Aluminium Solar Panel Mounting Rails

Aluminium Solar Panel Mounting Rails are one of the important part of a whole solar mounting structure. It is made of aluminum 6005-T5 materials with anodizing surface treatment, durable for more than 25 years.
Product Brand:TOP Energy
Product Material:Aluminum
Product Function:Rooftop installation
Service Life:≥25 years

Send Inquiry

Product Description

The TF-RL-48 Solar Rail is designed for rooftops, It is usually used for installation where there is a large strength requirement. There is Silver and Black color available, length can be customized as per request.

The pv rail profile designs is more stronger and thicker than ordinary roof rails on the market, through this rail our team can design solution to matching the wind speed max to 60m/s.

Technical parameters

Product Name	Aluminium solar panel mounting rails
Material	Aluminum 6005-T5
Color	Silver or Black
Length	As per request/project
Certificate	CE, SGS, ISO9001
Wind speed	Max to 60m/s

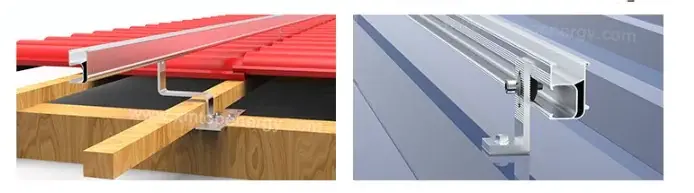

The TF-RL-48 PV Rails is designed with slot in the back of profile, so the rail connector can be installed at the back of Rail, that will not affect the installation of L feet or Tile Roof Hook.

The installation team don’t need to worry about the Interference issue, saving the installation time.

The anodizing layer thickness of our Aluminium solar panel mounting rails is more than 10μ, with good appearance and strong corrosion resistance. Which make them suitable for outdoor use in various climates

The weight of Aluminum solar mounting rails is light, easy to handle and install, which will save labor cost and support flexible installation.

The front side of the roof rail has stripes, which can increase the stability of the accessories of Roof hook or L Feet to matching perfectly with it.

Welcome to reach us for a detail quotation and solution.
