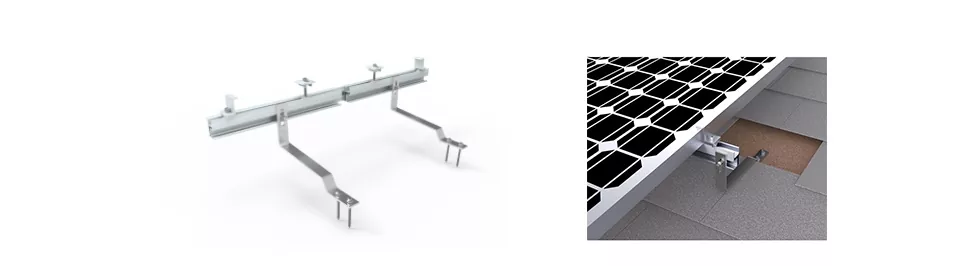

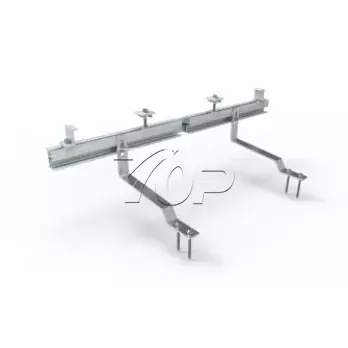

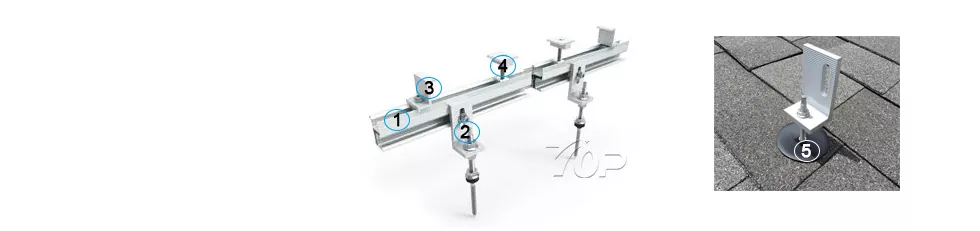

Asphalt Shingles Roof PV Mounting Structure

Asphalt shingles roof PV mounting structure design from TOP Energy highly focus on the installation convenience, simple structure, easy assembly, and lowest price cost. Customers could be easily operating the maintenance work such as  installation, inspection, cleaning and maintaining.

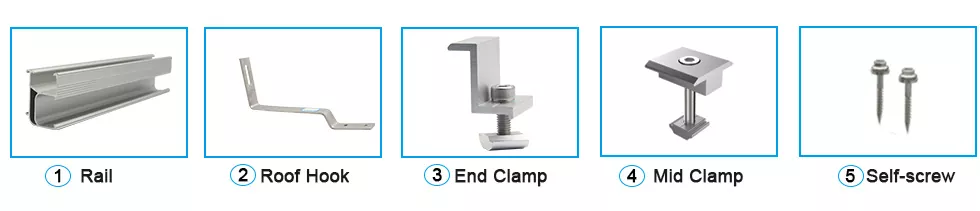

Our Asphalt Shingle Roof Solar Mounting System Structure is made of the high grade anodizing surface treated AL6005-T5 aluminum and stainless SUS304 steel.

Surface treatment such as sandblasted surface treatment and more options are available. The weight, thickness and treatment process could be customized accordingly

The special quality designed asphalt shingles roof PV mounting structure with high grade surface treatment supports vertical and landscape solar panel installation. The strength of our flexible PV Mounting for Asphalt Shingle Roofs construction withstands max. 60m/s wind and 1.4 kN/m2 snow loading. Our warranted offer supports more than 25 years service lifespan.

Core Strengths:

Material and weather resistance: TOP Energy choosing the Asphalt Shingles Roof PV Mounting Structure material characteristics proceed with anodized aluminum + hot dip galvanizing surface treatments, adapt to coastal high salt spray environment, wind load up to 60m/s, snow load up to 1.4kN/m².

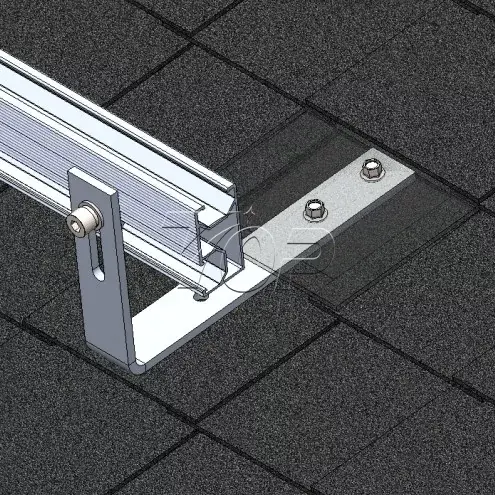

Installation flexibility: We designed the high - Strength Asphalt Shingle Roof PV Mounting to penetrate the roof of the ballast system or adjustable angle design, reducing the roof damage nor construction complexity.

Compatibility: Suitable for mainstream popular PV module brands and sizes like as thickness of 30/35mm, in the meantime our high end asphalt Shingles Roof PV Mounting Structure also supports double glass/single glass cells.
