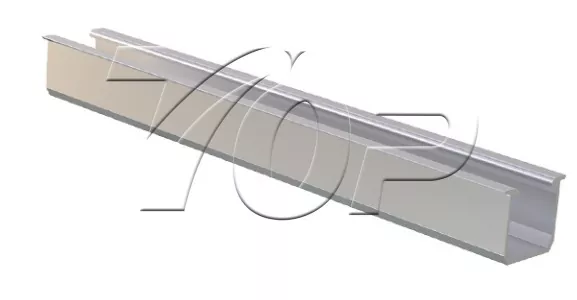

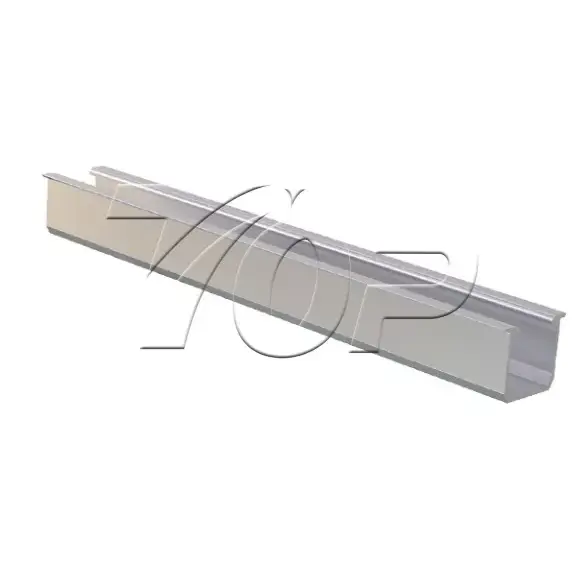

U type Aluminum rail for solar panel mounting System

Top Energy U type Aluminum rail for solar panel mounting System is made of high quality aluminum alloy, the aluminum material has good corrosion and rust resistance, so the rail can serve a long time for solar mounting system, no need for frequently maintenance.

U rail system is a time and cost saving solution for steel roof top.

The Aluminum solar U rail is only 150mm per piece, it’s lightweight and easy to package and transport, so the U rail can be loaded a lot in a standard pallet, can save a lot of space and shipping cost.

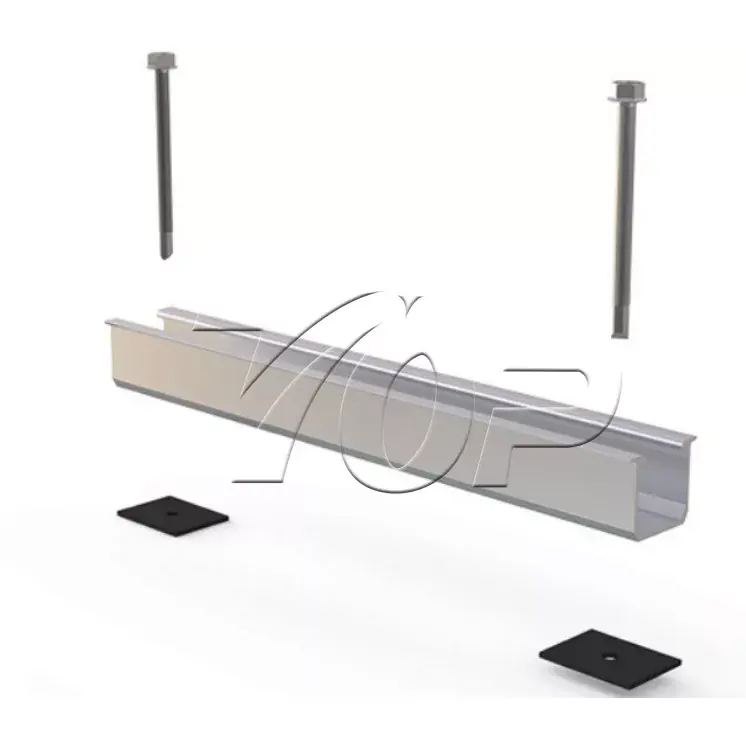

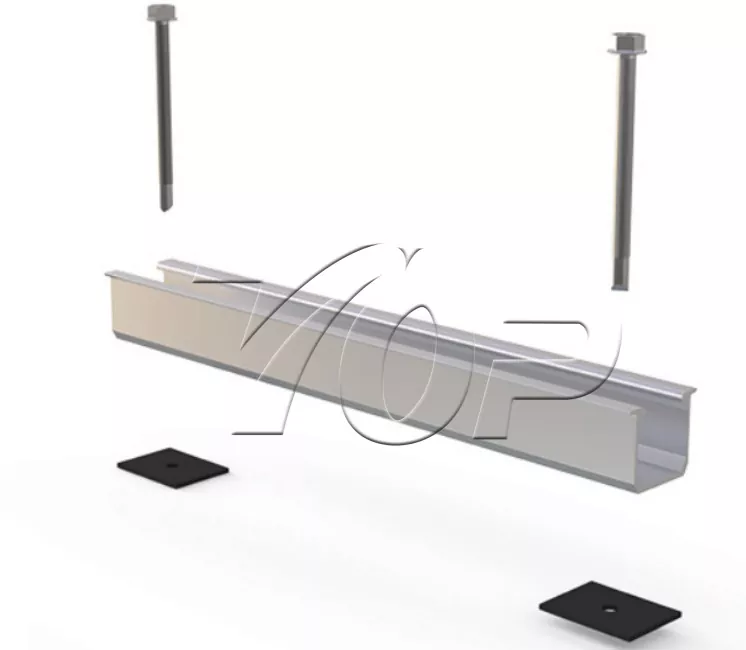

The U rail can be easily and directly installed by self tapping screw, and because U rail is lightweight, the workers to carry it on roof top very easily, it can save a lot labor and installation time.

Because the installation of the U rail needs drilling on roof top, the clients may concern about roof top water leaking problem.

Our U rail can be equipped with a rubber pad on the bottom, and the rubber pad and U rail will be connected by strong clue, the rubber pad is a perfect way to prevent water leaking risk on U rail system installation.

Technical parameters

Features & Benefits

1. Can be adapted to most kinds of color steel tile roofs,

2. Aluminum rails for solar panels is made of high grade aluminum 6005 - T5, lightweight and high strength,

3. U type Aluminum rail for solar panel mounting System can withstand strong winds of 60m/s and snow loads of 1.6KN/m², ensuring the stability and safety of the system,

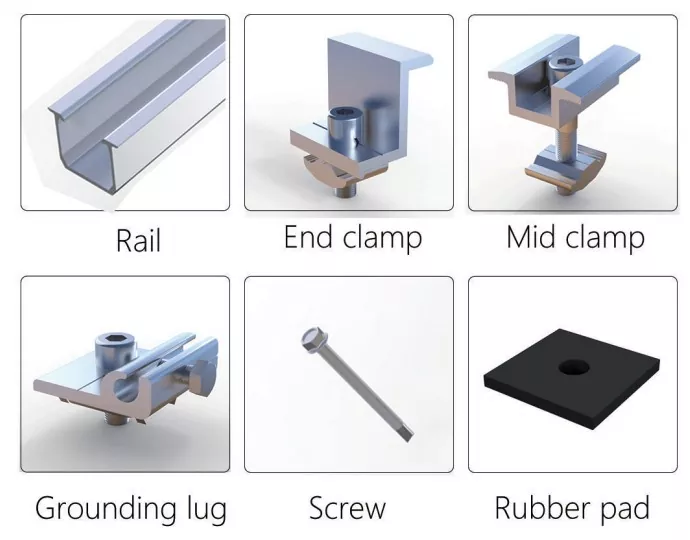

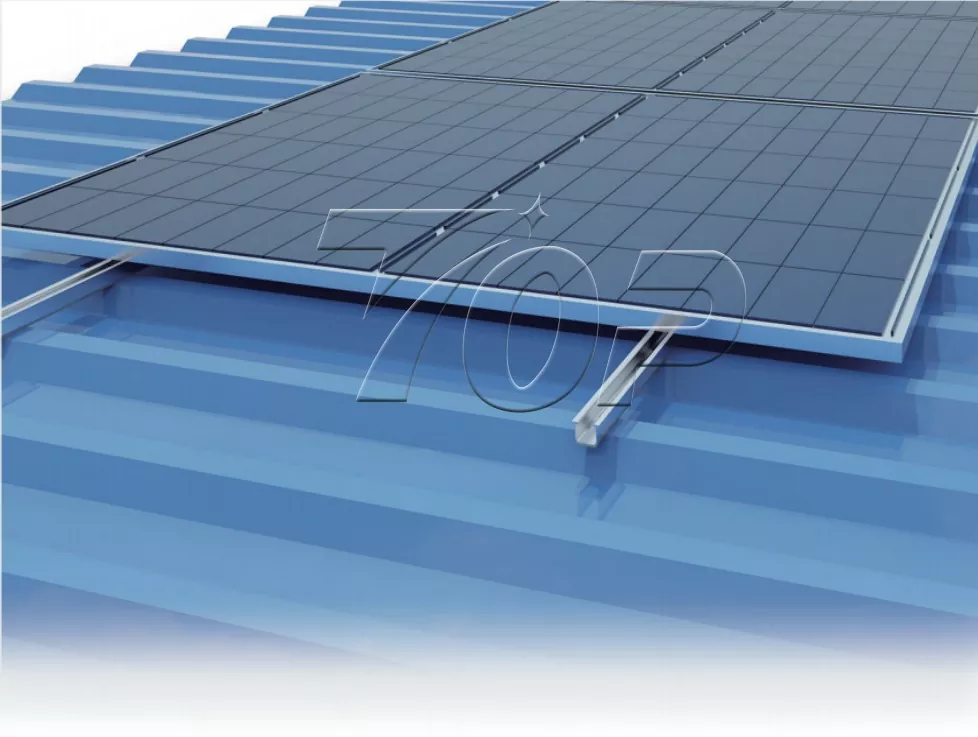

4. U Rail system for trapezoidal sheet metal roof is easy installation, U rail can be directly installed on rooftop by screw, and the other accessories can be easily clamped on U rail,

5. Rubber pad will be equipped together, no water leaking risk,

6. Easy to carry and transport, can save a lot cost.
