Aluminium Solar Panel Mounting Mini Rail

The Mini Rail system solar mounting is made of aluminum 6005-T5 materials, with anodizing surface treatment to reach a extremely strong anti-corrosion performance.

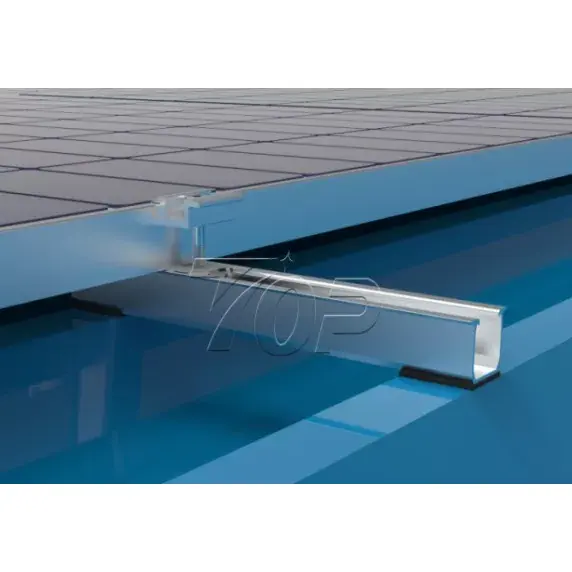

There are self-adhesive EPDM pad pasted under the Aluminium Solar Panel Mounting Mini Rail and self-tapping screws with sealing washers, double weatherproof protection, no need additional glue works.

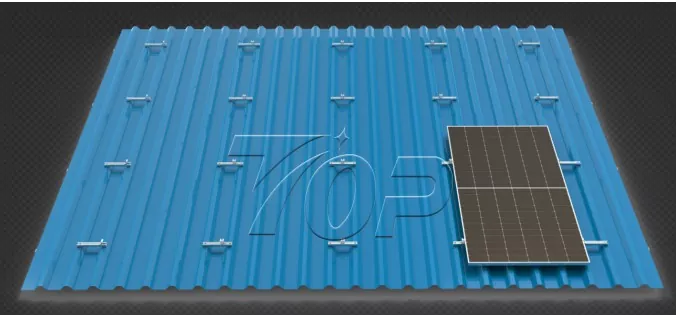

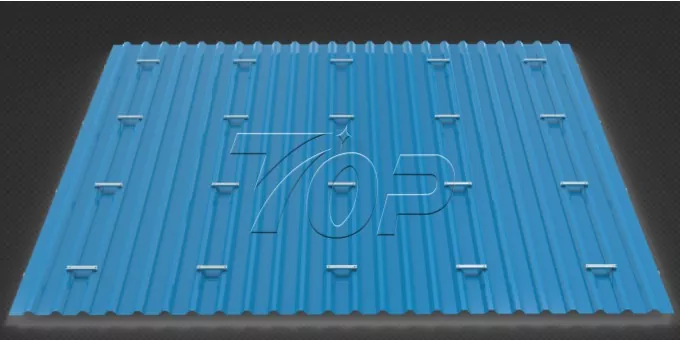

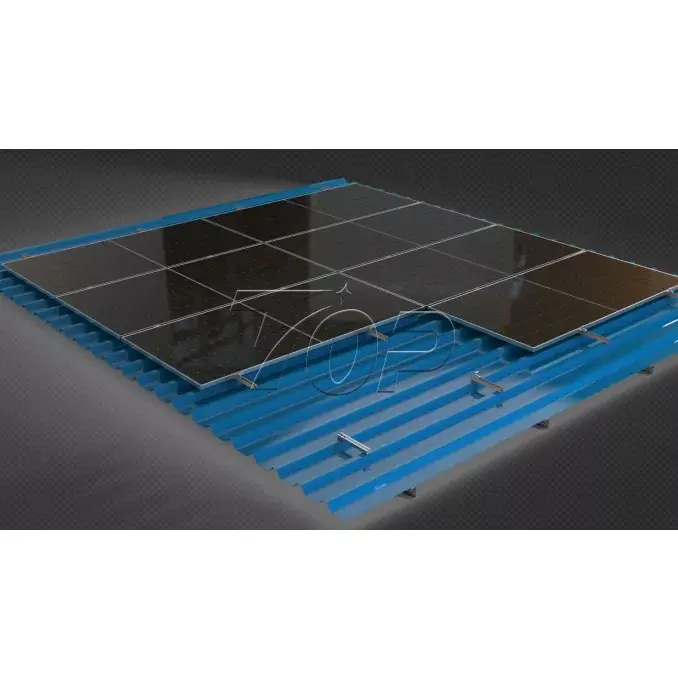

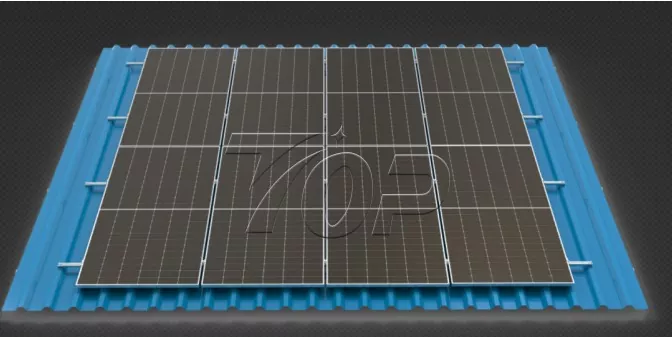

The Mini Rail system solar mounting is easy to install, Installation team just need to adjust the position properly and fix the Solar short mini rail to the iron roof with self-tapping screws, and then install panels directly on Aluminum solar mini rail with end clamp & mid clamp to complete the installation. Rubber pads are attached under the fixture to enhance the waterproof performance.

The solar mini rail can be cut into different length as per project required, it is normally subject to the spacing of roof wave crests. Our engineers team are in rich experience that they can design the suitable solution for you according to your project information.

Below information are required when you need a solution design for your project:

1. Panel size: ? Length*? Width*?Height, mm

2. Panel Layout/Array or rooftop size:

3. Rooftop corrugation spacing: ?mm

4. Wind speed:?m/s

5. Wooden purlin or Iron purlin

Pls contact our team to discuss more in details.

Advantages:

The Mini Rail system solar mounting is in Lower cost compared with long rail mounting system;

Fewer components, save shipping cost & installation time & labor cost;

Easy to transport and handle to rooftop;

Easy to make stock to distribute, clients can purchase them by table, more flexible for project installation or resell locally.

The structure is made of Aluminum materials with over 25 years’ duration.
