Aluminum Mini Rail for PV System

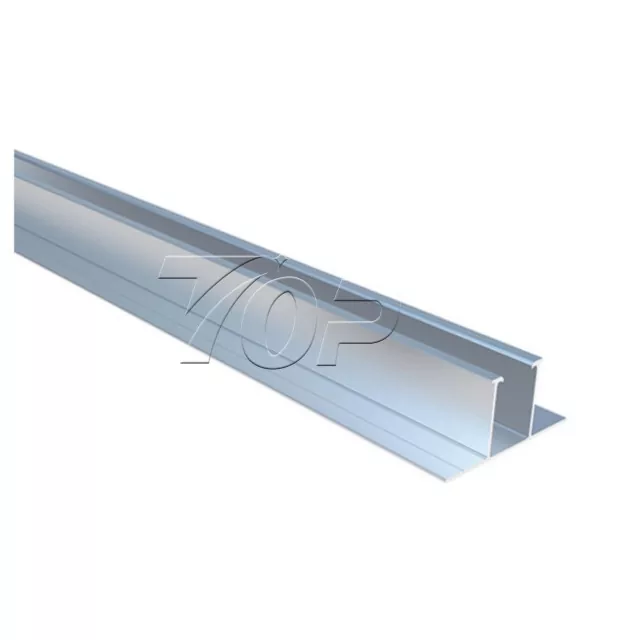

TOPEnergy designed Aluminum Mini Rail for PV System with Al6005-T5/T6 profile has very strong strength and hardness to support various of solar panel from the market. Specially the lightweight design could solve most of people’s worry about the overweight of the solar system on the metal roof. The Aluminum Mini Rail for solar panel mounting lightweight character has very high performance of solar panel installation and become the first option for solar power plant.

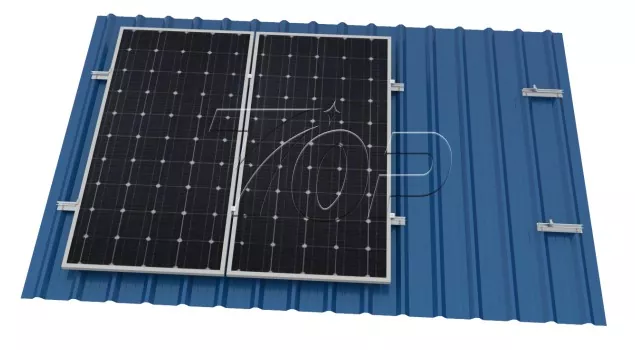

This Mini-rail Kit Trapezoidal Metal Roof design is optimized structure without clamps. Easy to be installed on the metal roof, and maximum reducing your end power plant investment. The simple structure could be installed on the roof easily, It is saving lot of time and labor cost as well. But this MiniRail system is very stable and withstanding strong wind. Now the Mini Rail - Solar Mounting Structure is become one of the famous solutions in rooftop solar system.

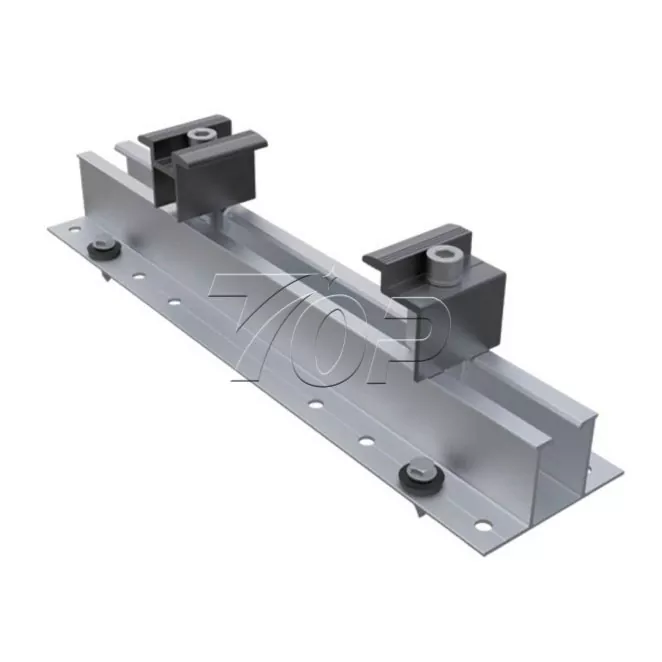

The two sides could be drilled with screw fasten holes to screw it on the metal roof. The mid clamp and end clamp mounted on its top to fasten the solar panels. It is suit to various of size and thickness of panels, meet Europe, And US, Asia area using.

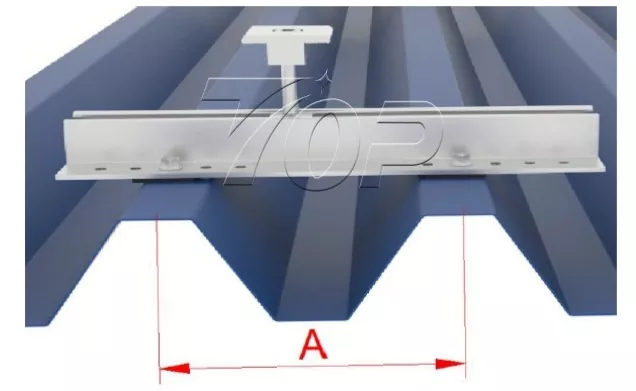

The Solar Short Mini Rails minimum distance of A is 80mm, maximum distance reach to 220mm. The distance also supported to be customized based on your real sites. So Mini rails for solar panels has big range of application for different wave size of metal roof.

Aluminum Mini rail PV system with the rails min size designed are hot-sale around the world, please feel free to reach us for sample directly.

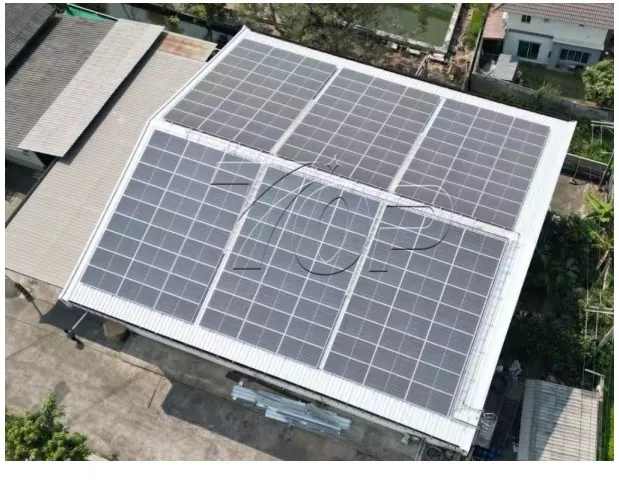

Real sites picture of Aluminum Solar Mounting Rails application
