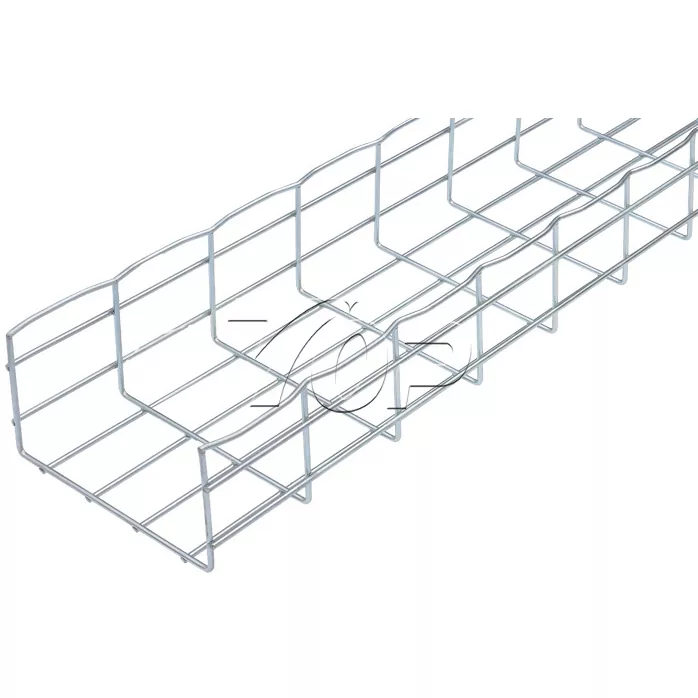

Mesh Cable Tray

The Mesh Cable Tray is mainly made of Q235 carbon steel and other materials. After hot-dip galvanizing, a zinc layer with a thickness not less than the corresponding standard is formed on the iron plate to prevent corrosion.

Wire Mesh Trays are in a grid shape, with small intervals, beveled edges at the ends, high welding strength, and good ventilation and heat dissipation. It has the advantages of convenient installation (light weight, easy on-site processing, fast installation), simple maintenance (easy to check cables), and cost reduction (optimized cables can use small cross-sectional area cables). It is suitable for photovoltaic and communication wiring, and is commonly used in modern data rooms, factories and other complex installation environments.

PRODUCT PARAMETERS

ADVANTAGE

1. Strong corrosion resistance: The Mesh Cable Tray adopts hot-dip galvanizing process, and a thick zinc layer is attached to its surface, which can effectively prevent external erosion, greatly extend the service life of the bridge in various complex environments, and reduce the replacement and maintenance costs caused by corrosion.

2. Convenient installation: The Mesh Trays is light, about only 1/5 of the traditional Grid cable tray, and the handling and installation operations are more labor-saving. Moreover, it does not need to customize complex parts such as elbows and tees in advance. Construction personnel can flexibly process according to the actual situation on site, which greatly improves the flexibility of installation, effectively speeds up the project progress, and reduces labor costs.

3. Easy maintenance: The unique open mesh structure of Hot-dip galvanized cable tray makes the internal cable layout clear, and maintenance personnel can quickly locate the faulty cable, which improves maintenance efficiency.

4. Good heat dissipation: The Wire Mesh Cable Trays has excellent ventilation. Good heat dissipation conditions can stabilize the cable performance, avoid aging and short circuit caused by overheating, and effectively extend the service life of the cable.

5. Reduce costs: Due to the excellent heat dissipation performance of Grid Style Cable Carrier, the working environment of the cable is optimized, they can operate in a more stable state. Based on this, cables with smaller cross-sectional areas can be selected while meeting the power transmission requirements. This reduces the cable procurement cost of the entire project and achieves rational use of resources and cost control.

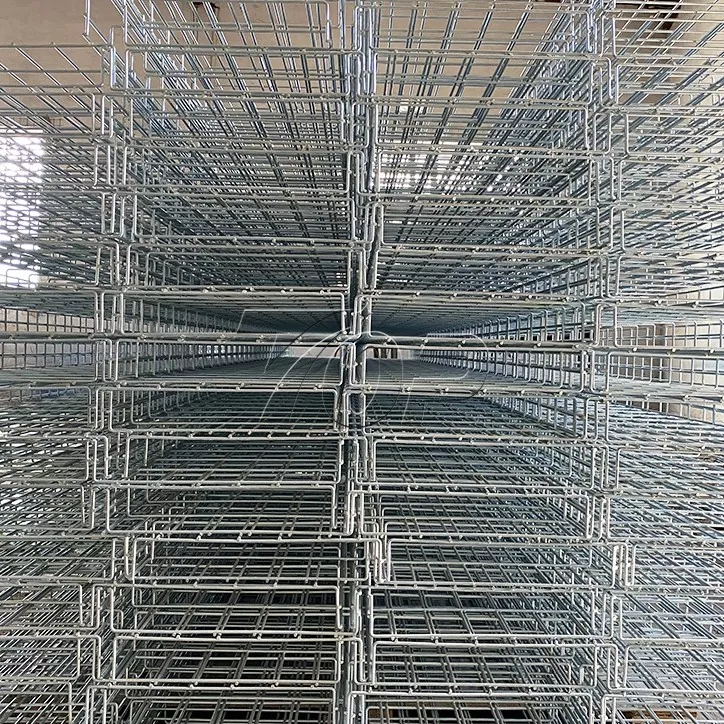

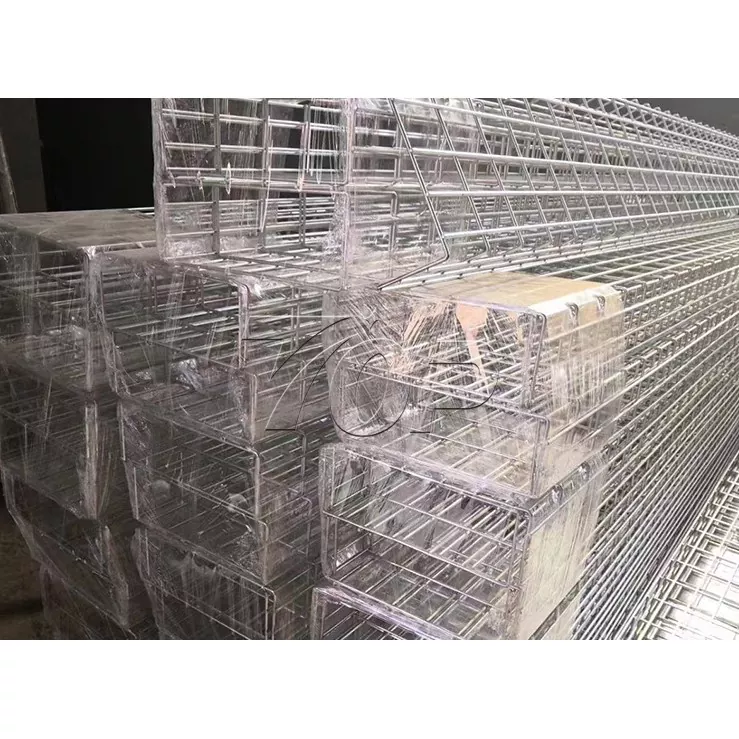

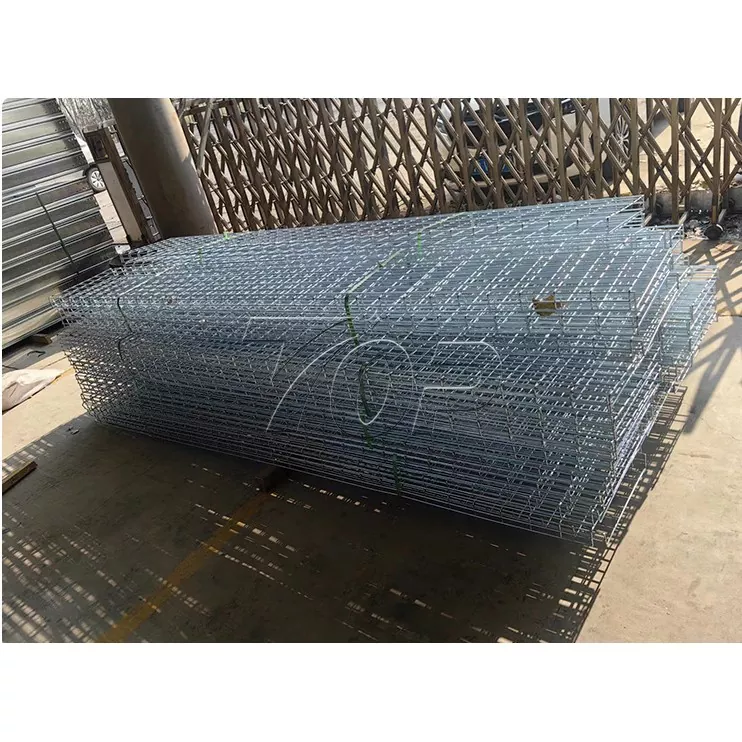

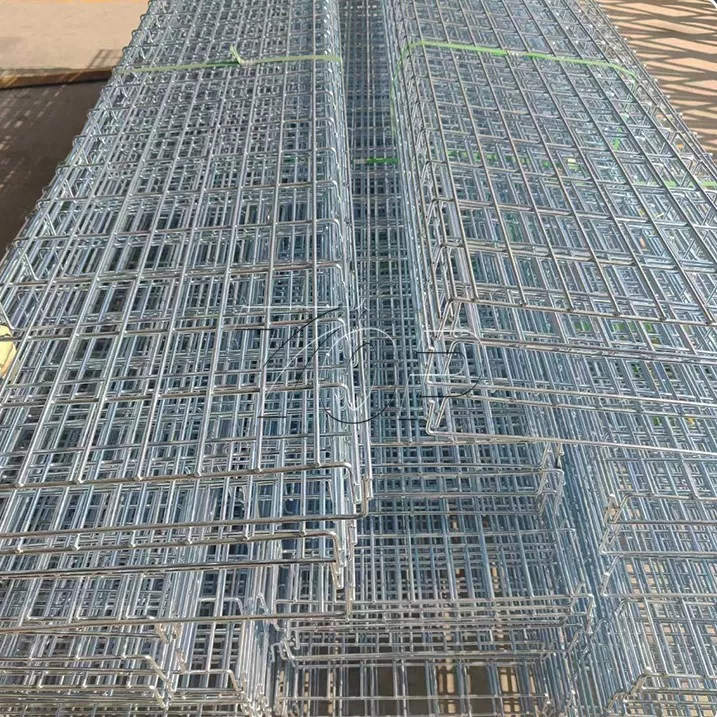

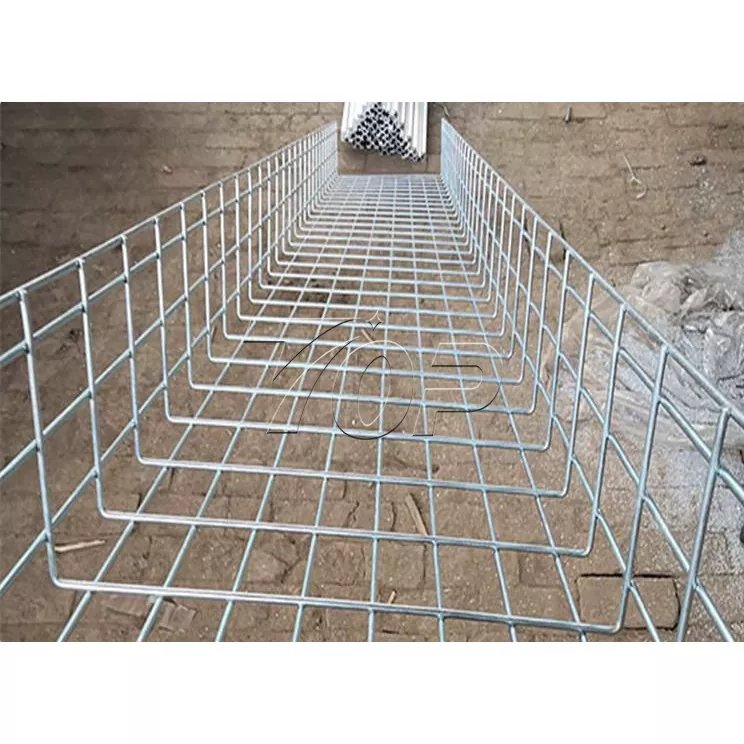

Product Show

FAQ

1. Is there any requirement for wall or ceiling material when install Mesh Cable Tray?

It require load-bearing ability. Solid brick walls and concrete structures can be installed with expansion bolts; Light partition walls (such as gypsum board walls) should first install auxiliary load-bearing structures (such as steel frames) and then fix the Wire Mesh Cable Raceway.

2. What is your lead time?

The production time is 7-10 working for regular orders. Custom Wire Mesh Cable Tray will depend on the quantity and agreement.

3. What is the appropriate spacing between Network Cable Tray? What is the basis?

The spacing between Cable Tray Straight Sections is not less than 0.3m, and the spacing between control cables is not less than 0.2m. To meet the heat dissipation of cables, facilitate maintenance, and reduce electromagnetic interference..

4. Can the Hot Dip Galvanizing Wire Mesh Cable Tray be customized according to project?

Yes. Our professional design team can customize the size of each part of the Cable Mesh Tray and special connection parts according to the space data you provide to adapt to the project space.
