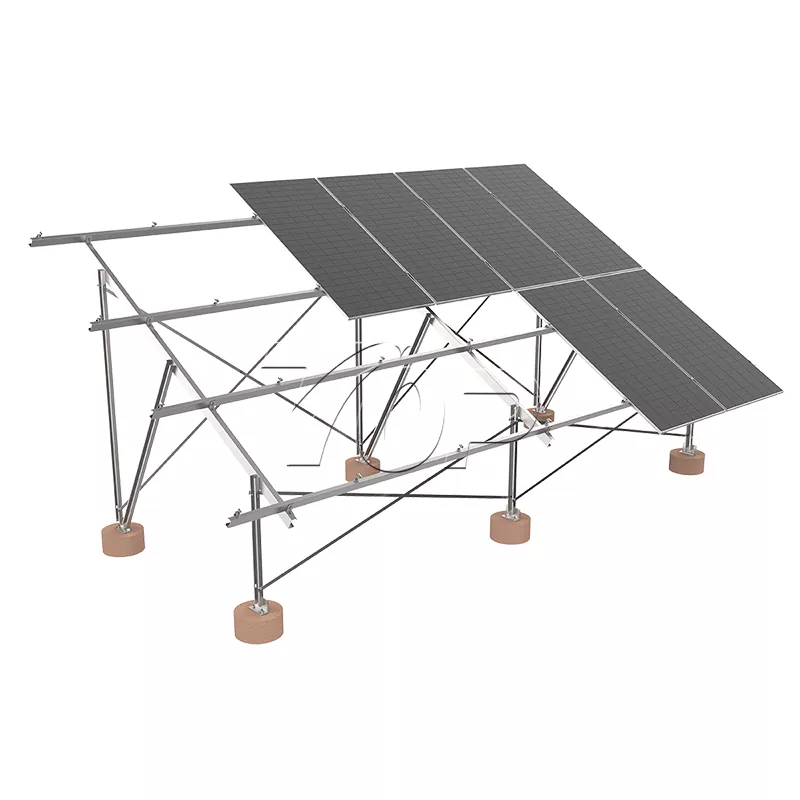

Solar Panel Ground Mount Rack

TOP Energy's C-shaped solar panel ground mount rack is the ground solar panel installation solution specifically designed for ground-based photovoltaic systems using a high-strength C-shaped steel (C-Channel) construction for commercial and large-scale photovoltaic power plant projects. With high load capacity, corrosion resistance and flexibility, the C channel construct support system can be adapted to different terrains and environmental conditions, especially for scenarios requiring high stability and long-term durability.
Product Brand:TOP Energy
Product Material:Carbon steels
Product Function:Commercial or farm ground solar power plants
Service Life:≥25 years

Send Inquiry

Product Description

TOP Energy designed and produced C-shaped solar panel ground mount rack is mainly used as the main structural material. Has a high strength-to-weight ratio. This ground mount solar system can reduce the weight of the entire support system while ensuring sufficient carrying capacity. Its lighter brackets are more convenient during transportation and installation, while also reducing the load bearing requirements of the foundation.

PRODUCT PARAMETERS

Manufacturer	TOP Energy
Product name	Solar panel ground mount rack

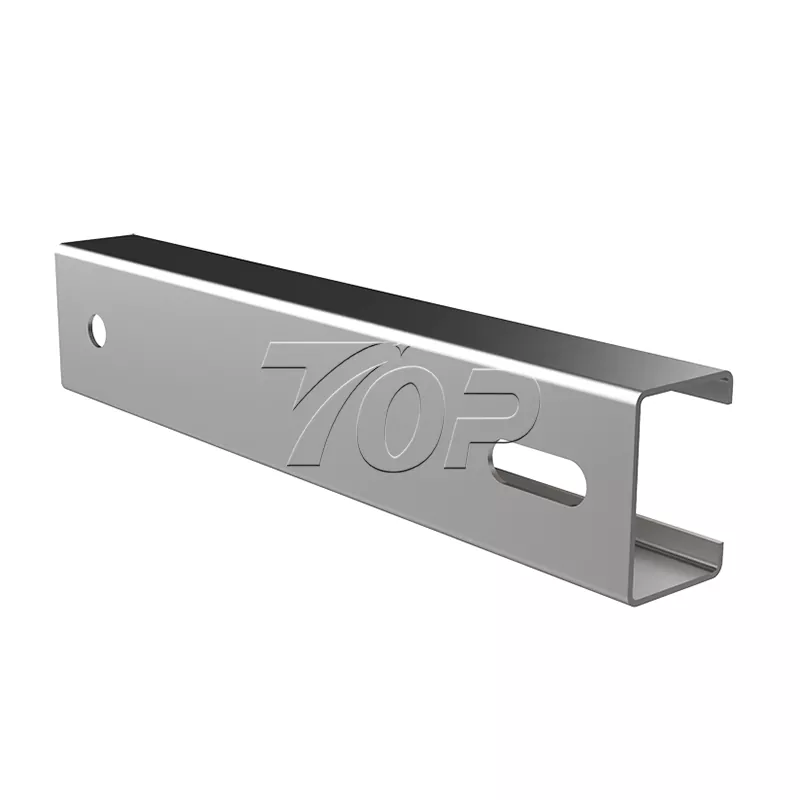

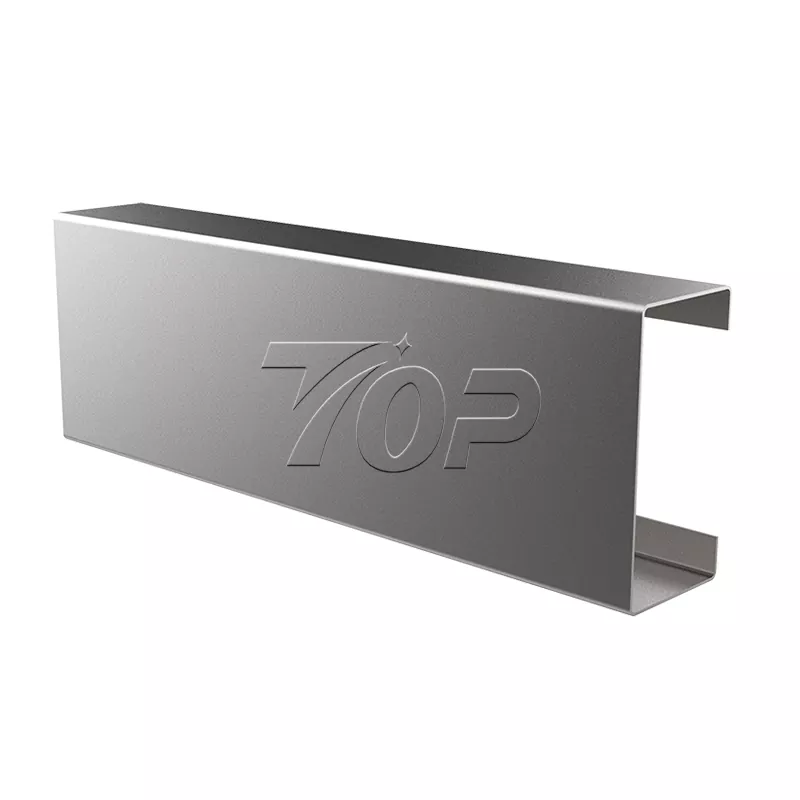

Material	C-shaped steel (hot-dip galvanized steel or anodized aluminum), thickness 2-4mm
Kits	C channel steel constructs, rails, clamps, accessories, etc.
Load-bearing capacity	The single-stand system can carry 2-4 tons (depending on configuration)
Certification	ISO 9001, AS/NZS 1170, TUV and other international certifications.
Packaging	Standard container transport, support customized packaging.

High strength material: Hot dip galvanized steel (HDG) or anodized aluminum provides excellent corrosion resistance and structural strength with a life span of more than 25 years.

Modular design: Solar panel ground mount rack supports rapid assembly and adjustment, compatible with a variety of solar panel sizes.

Wind resistance: Through optimized ground mount solar rack structural design and foundation fixing, it can resist wind speed above 60 m/s, suitable for high wind pressure areas.

Flexible installation Angle: Support fixed tilt Angle (15°-60°) or seasonal Angle adjustment to maximize power generation efficiency.

Environmental protection and low maintenance: no need for concrete foundation, reduce construction pollution, low maintenance costs.

Installation mode

1 Preparing for Installation

Site checking: Check the flatness of the ground and the type of soil (anchor screws or concrete foundations are recommended).

Tools list: electric drill, wrench, level, anchor screw mounting machine (optional).

2 Installation Procedure

Foundation fixation:

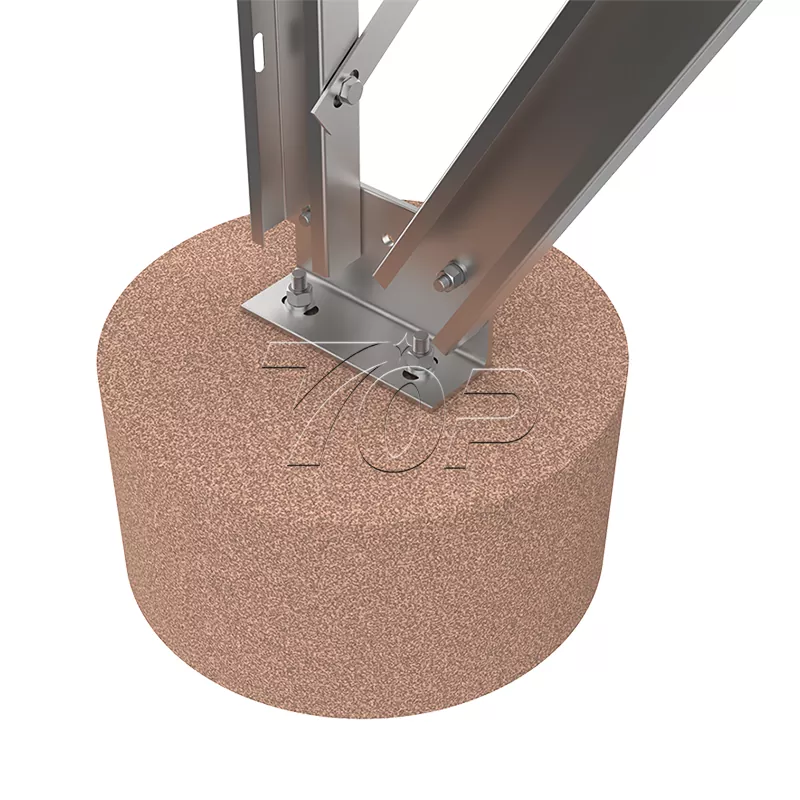

If concrete bases are used: pour concrete piers with a depth of at least 80cm and insert support base bolts.

If using anchor screws (recommended) : Screw the screws into the ground to the design depth (usually 1.2-2m).

Support assembly:

Fix the C-shaped steel column vertically on the foundation and tighten it with bolts.

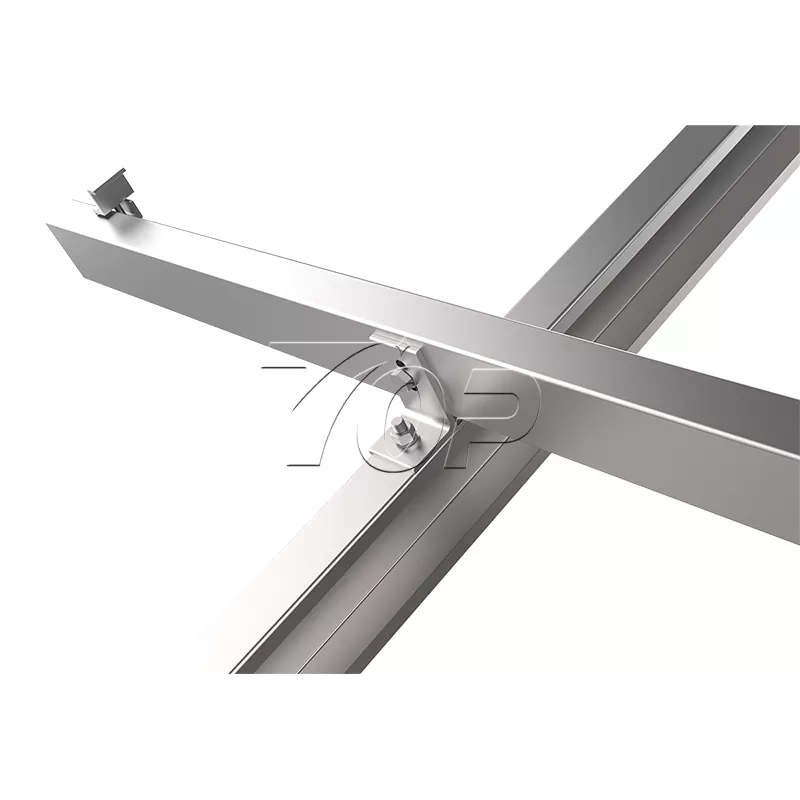

Install transverse support beams and diagonal braces to make sure the Solar panel ground mount rack structure is level (calibrate using a level).

Install solar panels:

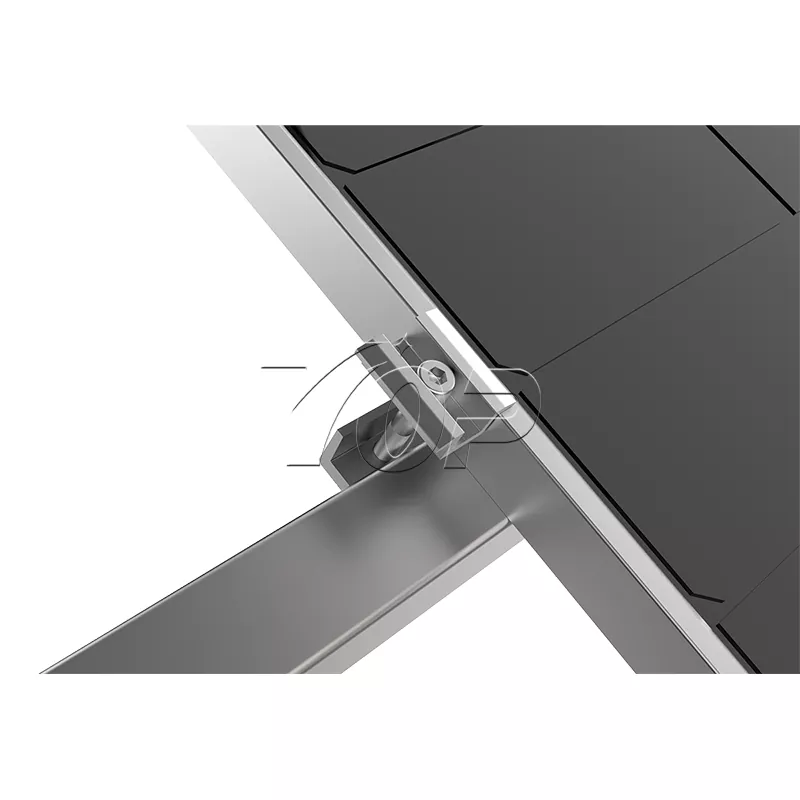

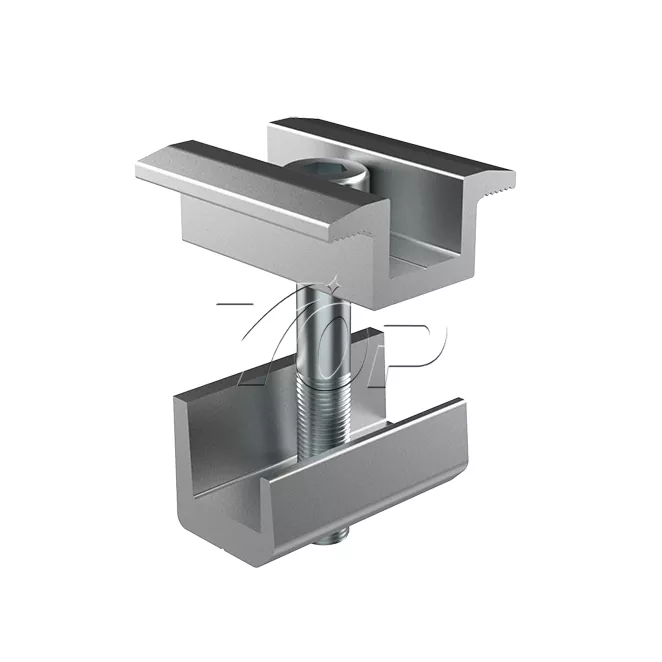

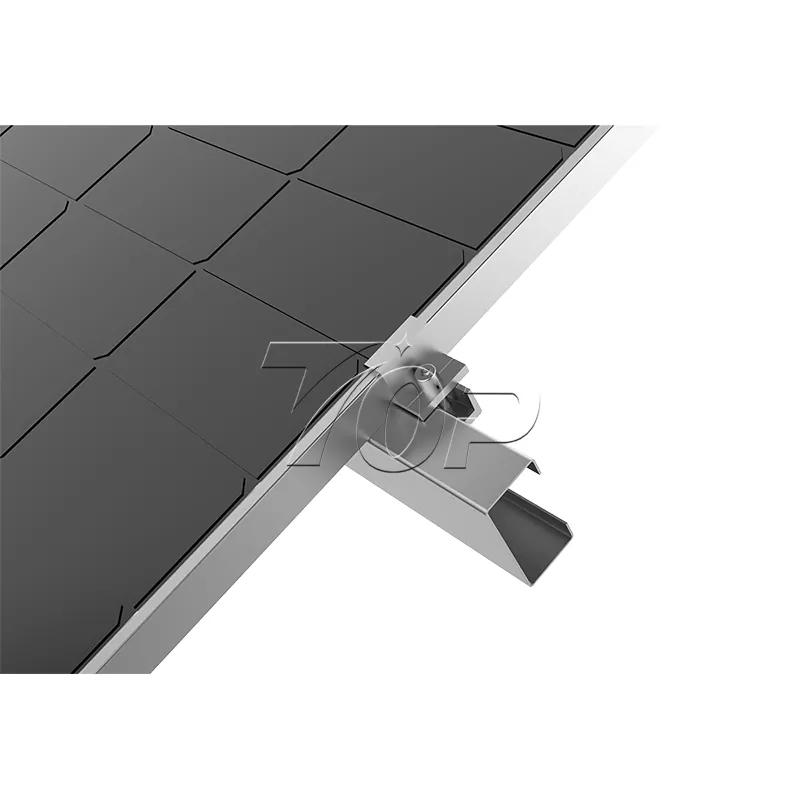

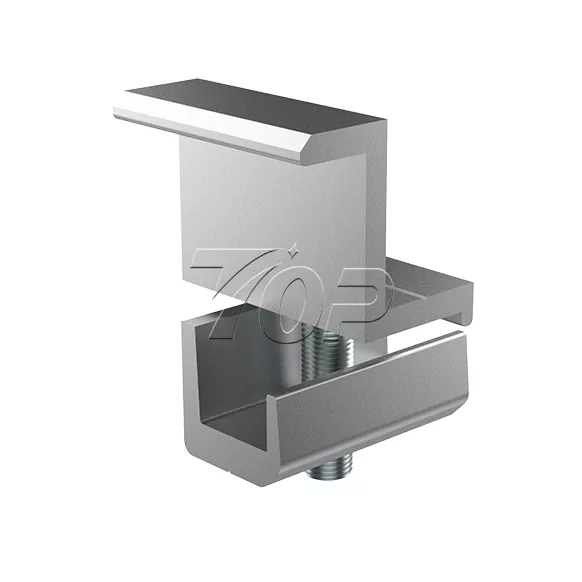

The solar ground panels are placed on the beam and fixed with aluminum alloy clamping fixture to ensure uniform spacing (recommended spacing ≥10cm for heat dissipation).
