Solar Panel Racking System

TOP Energy designed N type of Solar Panel Racking System for efficient ground solar panel mounting using high-quality aluminum/carbon steel materials and advanced design concepts to ensure easy installation, structural stability and maximize the efficiency of solar energy. The Solar Panel Installation System is also suitable for a variety of applications such as rooftop, ground and commercial solar power plants.

PRODUCT PARAMETERS

The Type N Solar Panel Racking System offers high flexibility and scalability for ground-mounted solutions.

Product Features:

*The N type Solar Panel Mounting System structure is stable and suitable for all kinds of terrain.

*The installation Angle is fixed and suitable for areas with stable sunshine conditions.

Installation steps:

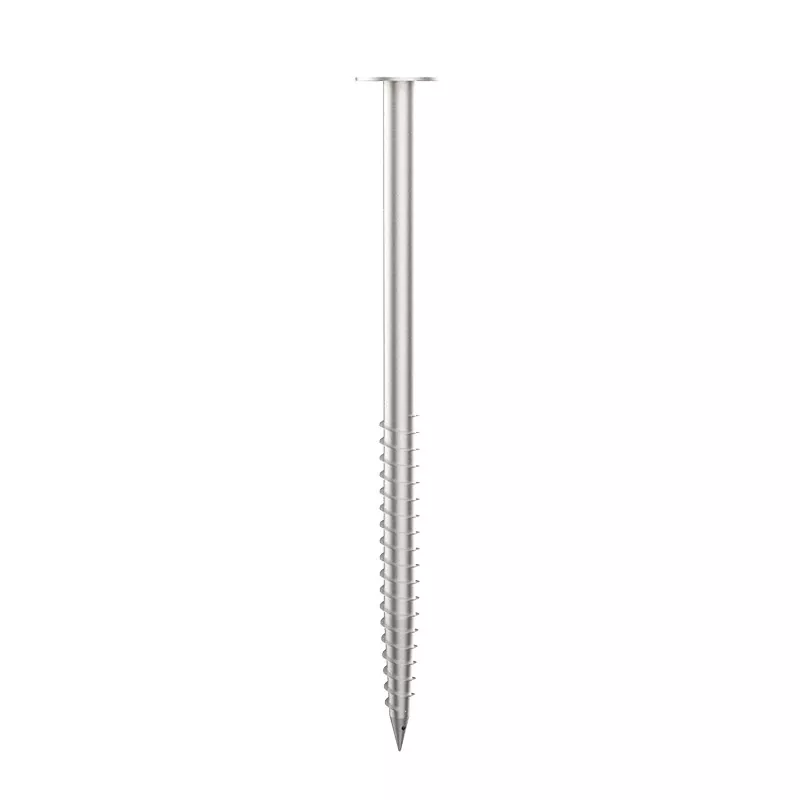

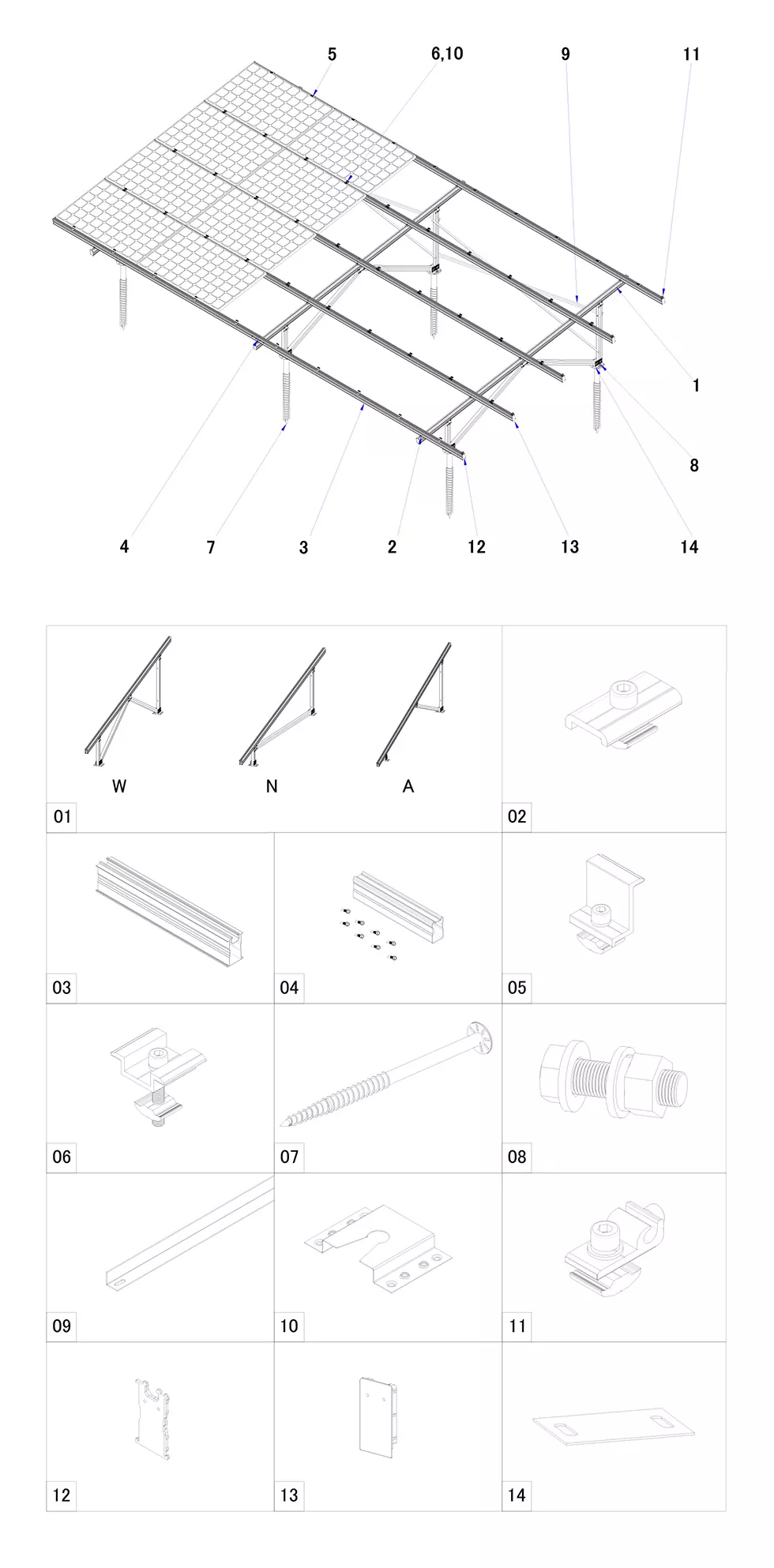

1. Foundation construction: According to the Solar Panel Racking System design drawings, anchor bolts are embedded in the ground or concrete foundation is poured.

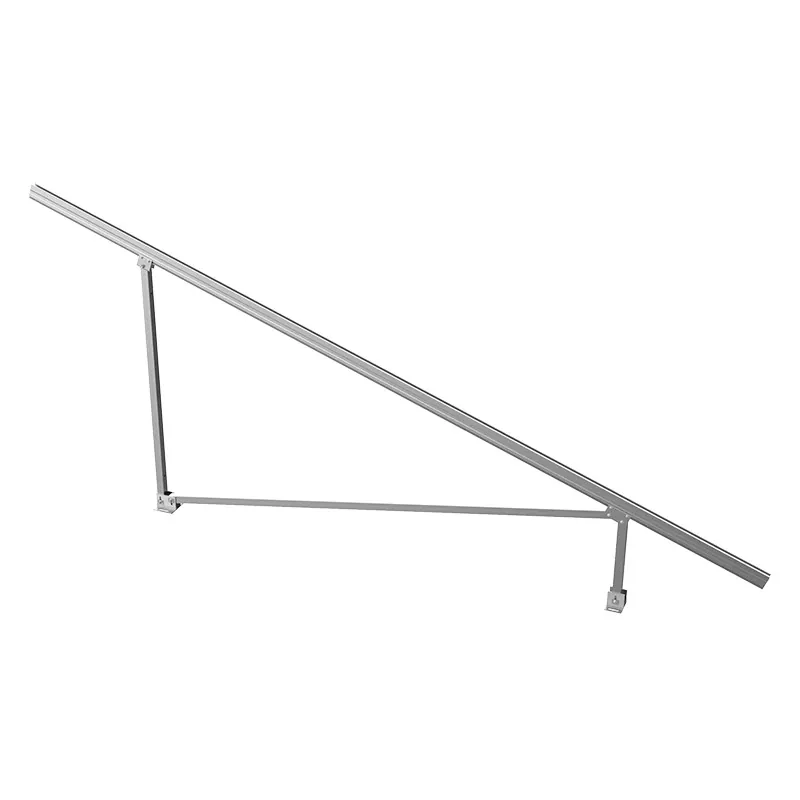

2. Bracket support installation: Fix the support column of Aluminum Solar Panel Racking on the foundation to ensure perpendicularity and levelness.

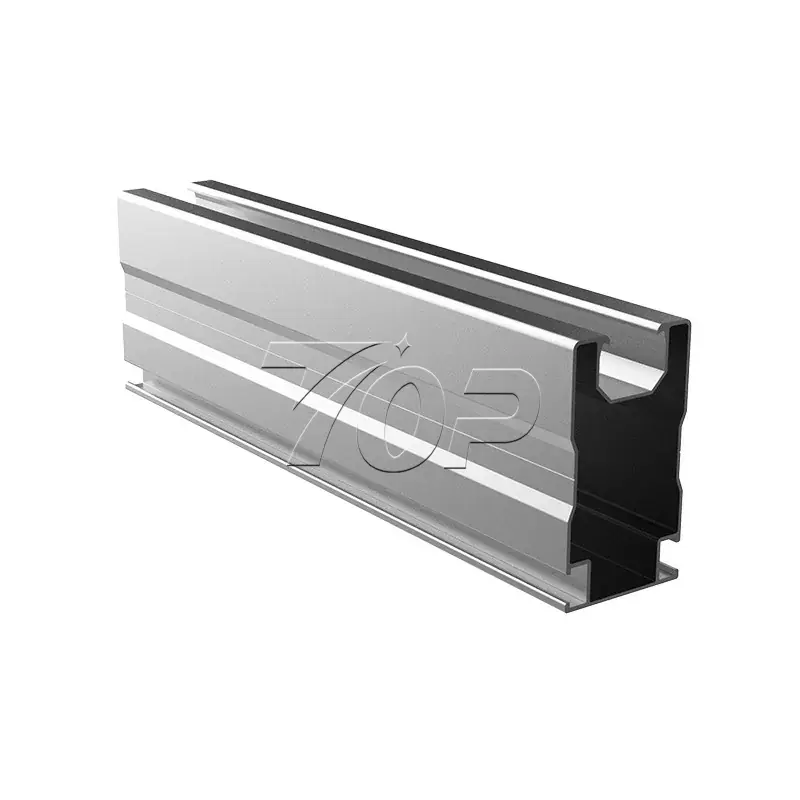

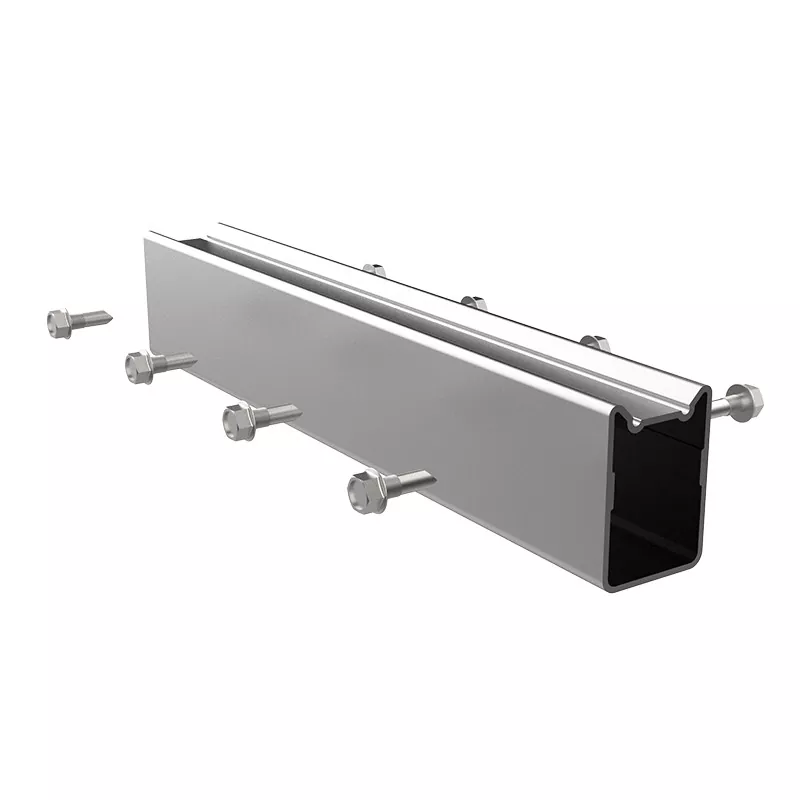

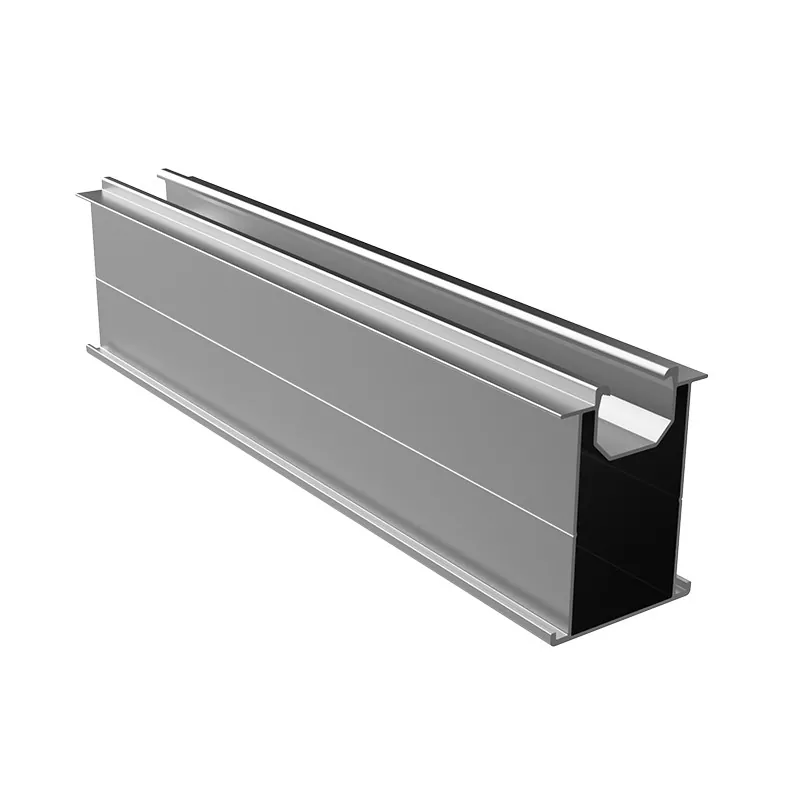

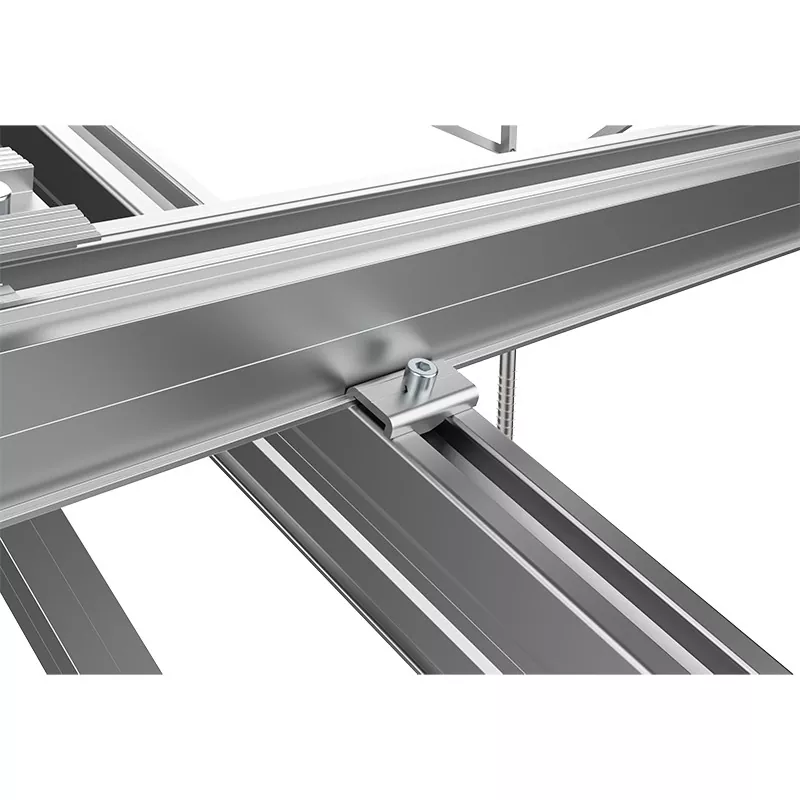

3. Rail installation: Install the rails on the support column and adjust the Angle and direction of it.

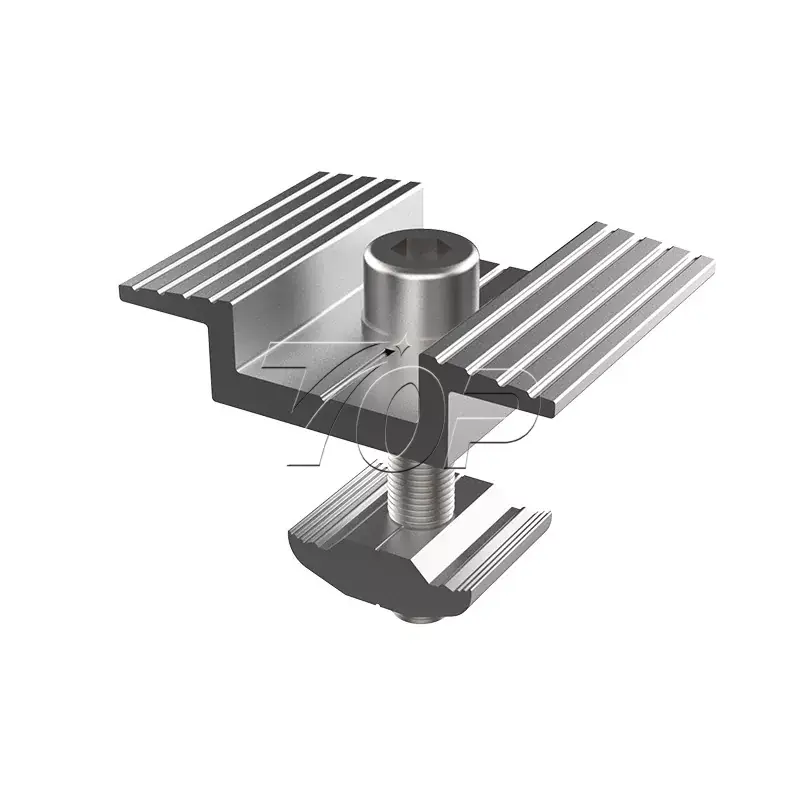

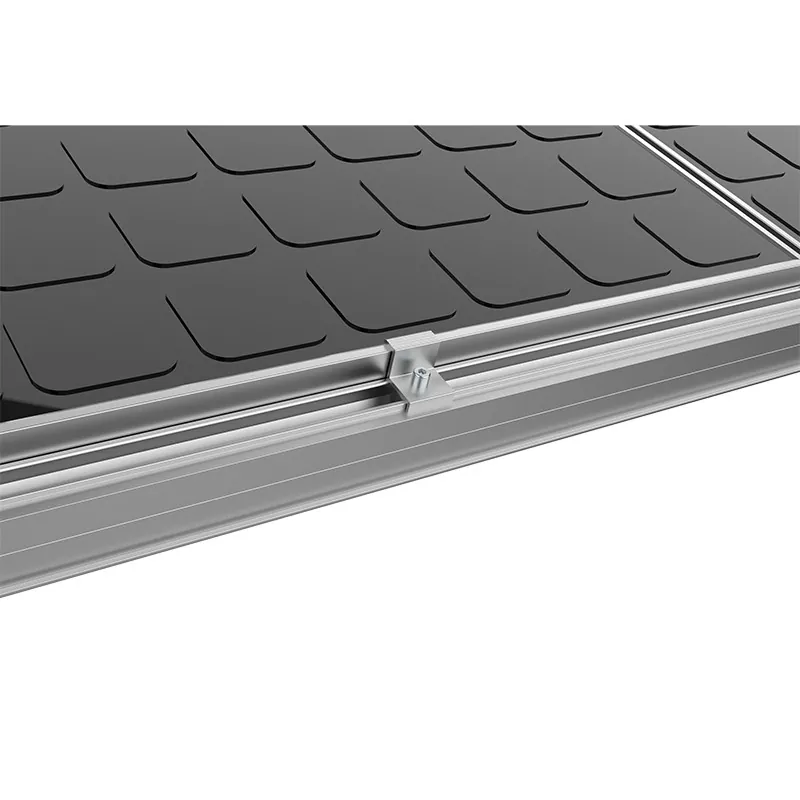

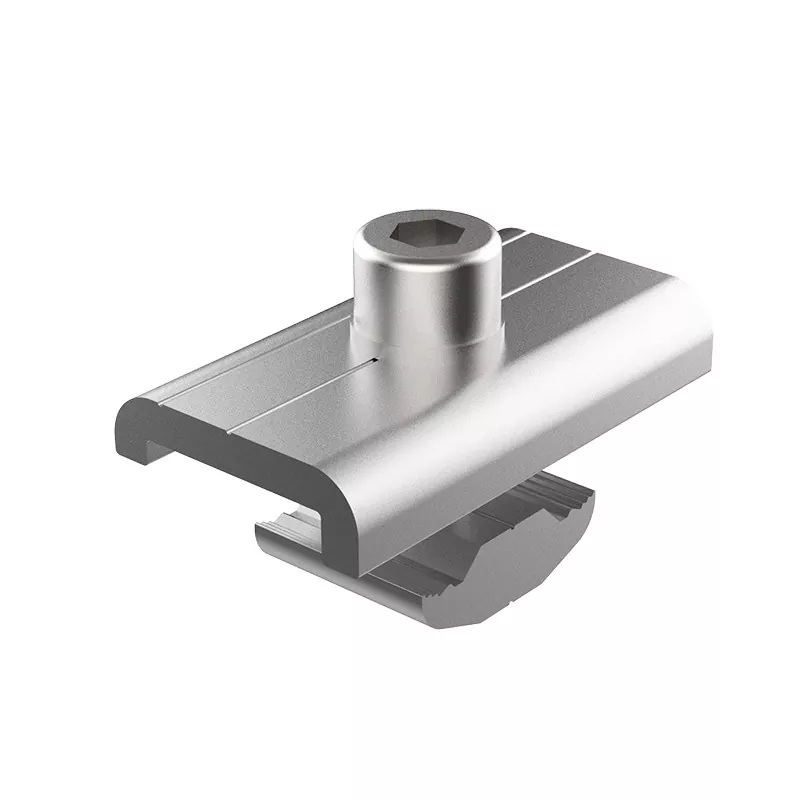

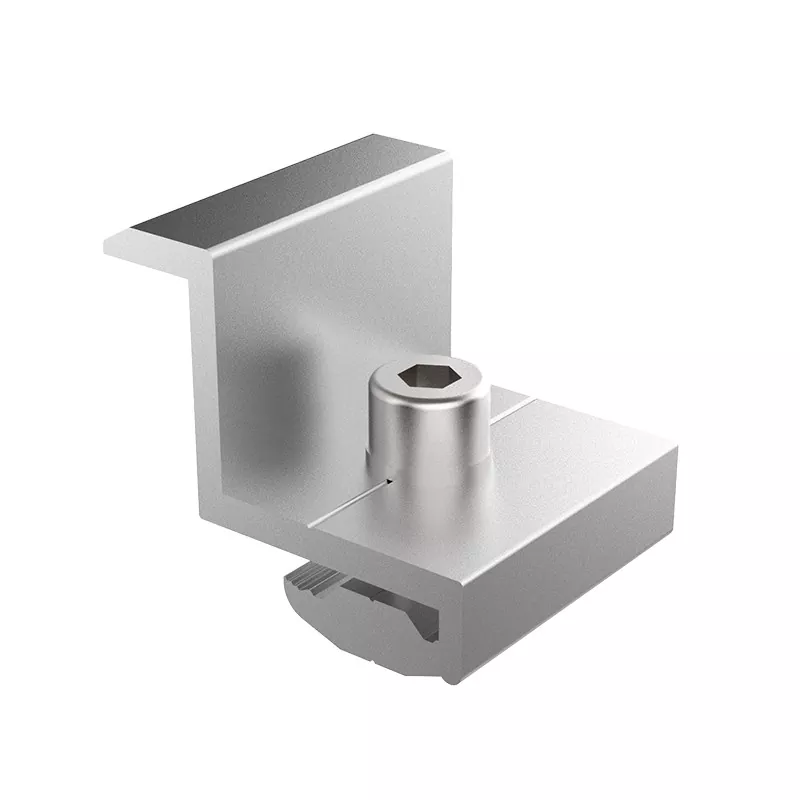

4. Solar panel installation: Fix the solar panel module on the rail with mid-clamp and end-clamps, mounting accessories, then complete the electrical connection.

Installation advantages:

Fast installation: Modular design reduces installation time and labor costs.

Flexible adaptation: Suitable for all roof types and floor conditions.

Safe and reliable: The strong wind load and snow load capacity, ensures the stability of the system in harsh environments.

Environmental protection and energy saving: The Solar Panel Racking System installation process does not require complex construction, reducing the impact on the environment.
