Solar Panel Rail Clamps

Solar Panel Rail Clamps are the important components used for solar panel installing on the rail for toproof and ground solar system. TOP Energy designed  solar panel clamps of rail are highly compatible with various solar panel modules and mounting systems. The clamps contains mid-clamp and end-clamp. We are using high quality aluminum Al6005-T5 and with SUS304 material screws, bolts, solar mounting accessories.

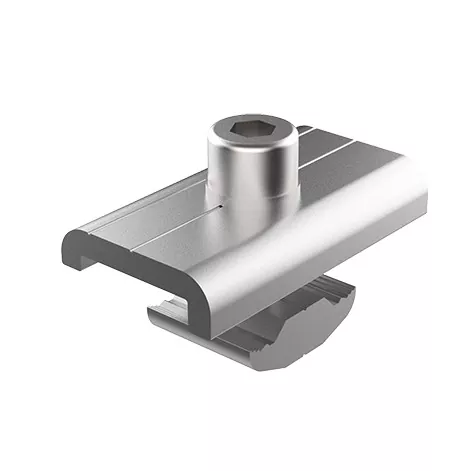

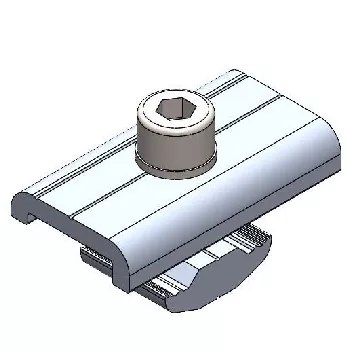

Mid-clamps of PV modules corrosion resistant solar panel rail clamps installed on the rail to fasten solar panels by panels. It must using the high hardness and corrosion resistance aluminum material.

Our structural design enables it to fit closely in the middle connection of two photovoltaic modules. During solar power plant site installation, the Mid Clamp is mainly used to fix the photovoltaic modules. It is placed at the joint of the frame of the two solar panels and tightly connected to the frame of the panels by bolts or clasps to prevent the solar panels from displacing under external forces such as wind and snow loads.

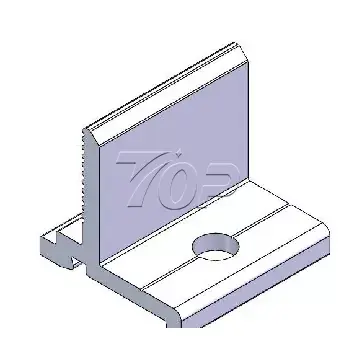

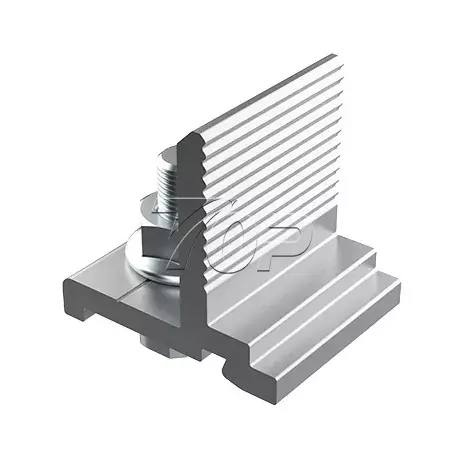

End-clamps installed on the Aluminum solar panel rail to fasten solar panels by panels at the end side.

Its main use is to fix the edge of the solar panel array. It is pressing panel modules tightly by pressing the panel frame, meanwhile it is preventing the edge of the photovoltaic module from tilting outward or shifting when subjected to external forces, thus ensuring the integrity of the entire photovoltaic array.

PRODUCT PARAMETERS

solar panel rail clamps is the best choice in the current photovoltaic installation scheme for ground or roof solar construction building.

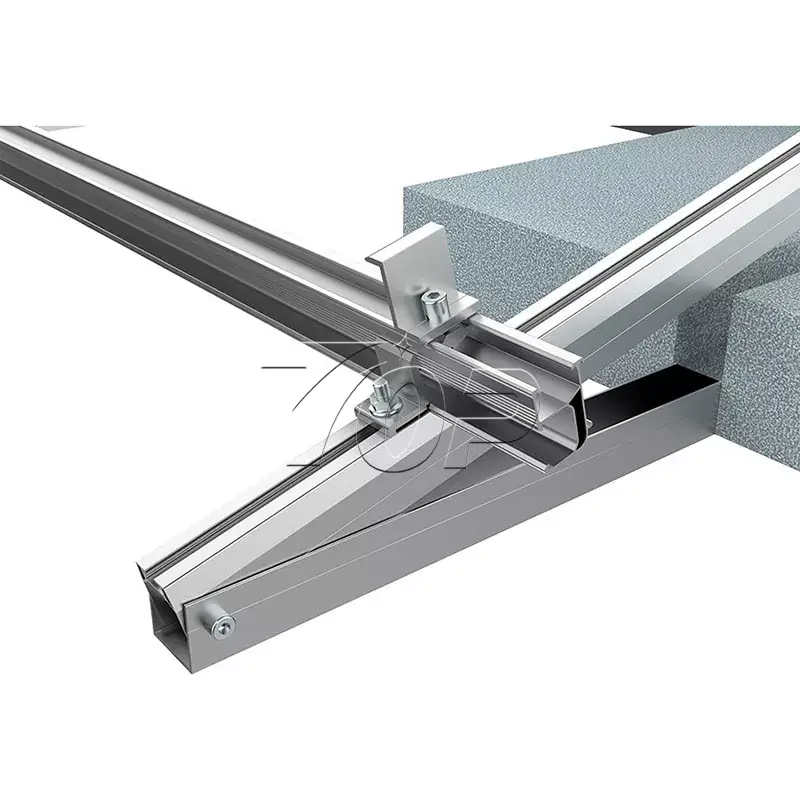

PRODUCT SHOW

Functions:

Maintaining module spacing and alignment: Our galvanized solar panel rail clamps ensure a uniform and consistent spacing between photovoltaic modules, which is important for the aesthetics and efficient power generation performance of the entire solar panel array.

Conduction load: The solar farm rail clamps can effectively conduct the wind, snow, vibration and other loads of the photovoltaic module to the support system.
