Solar Power Cable Clips

In the solar photovoltaic system, the stable connection and fixation of the cable is extremely critical. Our Solar Power Cable Clips are carefully designed to meet this core demand.

The solar cable clips is made of high-quality stainless steel with excellent corrosion resistance. Whether it is a humid coastal area or a windy inland desert, facing a complex outdoor environment, it can effectively resist erosion by water vapor, salt, sand and dust, it is not easy to rust and damage, and can operate stably for a long time, providing strong guarantee for the safe and stable operation of the solar  photovoltaic system.

The unique structural design makes the solar PV cable clips stable and can provide equal and stable clamping force to firmly fix the solar cable in the designated position, effectively reduce cable displacement, reduce the probability of poor cable contact, wear and other problems, and ensure efficient power generation of the solar photovoltaic system.

Our Solar Power Cable Clips are available in various specifications and can accurately adapt to solar cables of different diameters and types. At the same time, Solar panel cable clips is widely used in various solar projects, such as large-scale solar photovoltaic power stations, solar rooftop photovoltaic systems, to meet the cable fixation needs of solar PV systems of different scales and scenarios.

Technical parameters

Features & Benefits

1. Excellent corrosion resistance

The Solar Power Cable Clips material of 304 or 316 stainless steel (optional) can withstand 1000 hours of salt spray test without obvious corrosion, and can also resist the corrosion of common acid and alkali chemicals. It can ensure long-term use in various harsh environments, is not easy to damage, and reduces replacement costs.

2. Accurate adaptability

The specifications and sizes are rich, with a variety of options such as 50mm, 80mm, 100mm, 150mm, etc., and a width of 15mm, 20mm, 25mm, etc., and a thickness of 2mm, 3mm. It can adapt to cables with a diameter range of 4mm-30mm to meet the fixing needs of different solar cables.

3. Wide temperature adaptability

The operating temperature range is -40℃-120℃. Whether it is in the cold northern region, the hot southern environment, or even the high-temperature industrial site, it will not affect its normal function, ensuring that the cable clamp can work stably under various temperature conditions.

4. Convenient installation method

Quick Install Solar Cable Clip can be easily installed by clamp installation. The operation is simple. Construction personnel can flexibly choose according to the actual situation, which greatly improves the installation efficiency and reduces the installation difficulty and cost.

5. Lightweight product weight

According to different specifications, the weight range is 50g - 200g, which not only ensures the strength and durability of the product, but also does not cause inconvenience to installation and use due to excessive weight, and is easy to transport and operate.

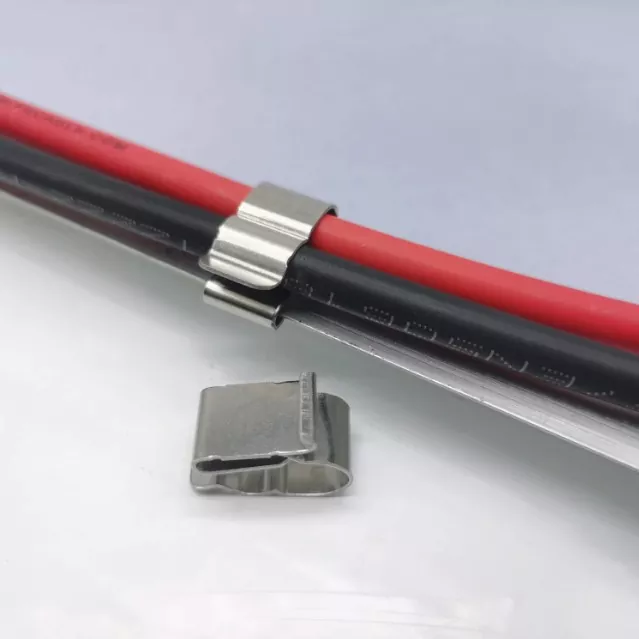

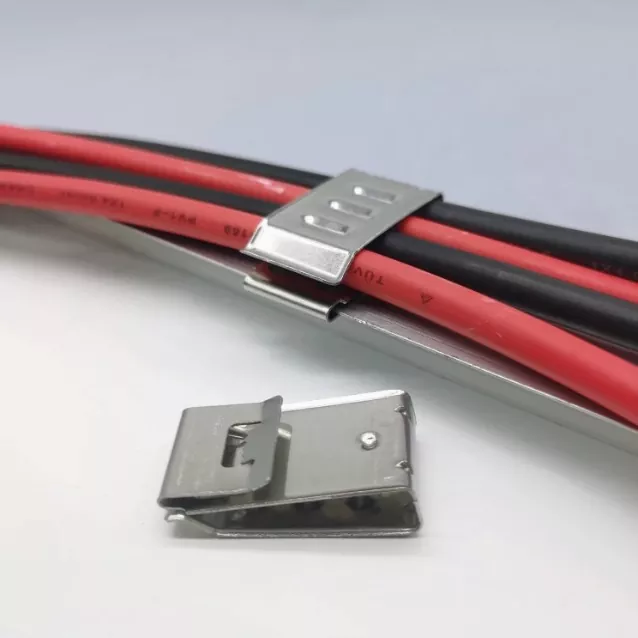

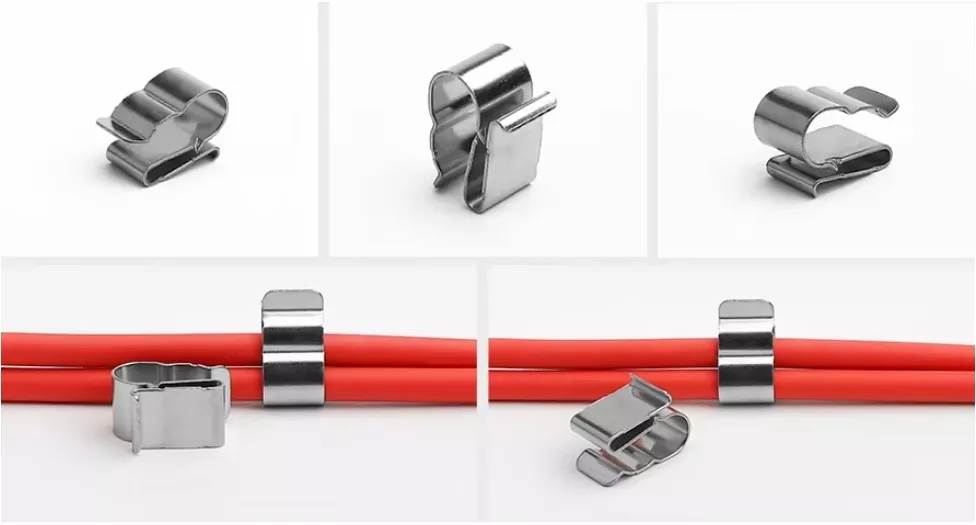

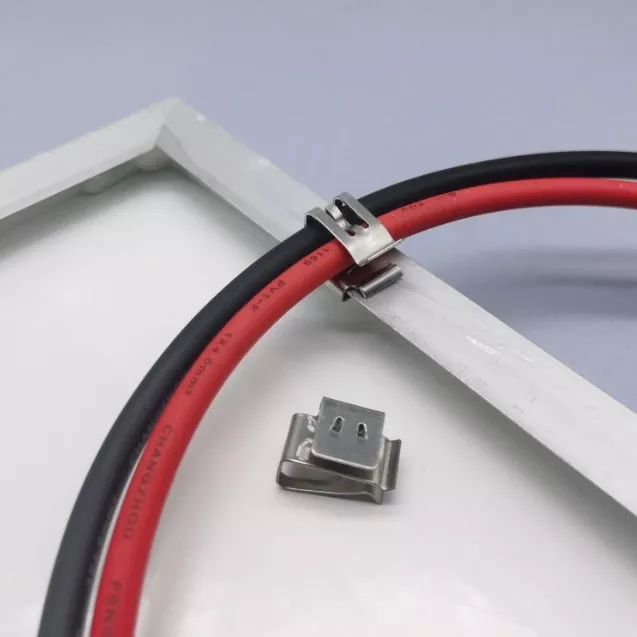

PRODUCT SHOW

FAQ

1. What types of solar cables are suitable for this Solar Power Cable Clips?

A: Our Solar cable fasteners is suitable for common single-core and multi-core solar  cables, and can be adapted to cables with a diameter range of 4mm - 30mm. If there are special needs, a larger range can also be customized.

2. Can the Solar cable wire clip be installed on a support structure made of different materials?

A: Yes. Support structures made of metal, wood or plastic are all suitable, as long as a suitable fixing position can be found. However, care must be taken to ensure that the support structure has sufficient strength to withstand the weight and external forces of the cable and cable clip.

3. In daily use, does the Solar Power Cable Clips need special maintenance?

A: No special maintenance is required, as the stainless steel material itself is highly corrosion-resistant. You only need to regularly check whether the cable clip is loose. If it is loose, tighten it with a tool and continue to use it normally.
