Standing Seam Roof Clamp

TOP brand Standing Seam Roof Clamp is a key accessory designed for solar panel vertical array installation on the roofs, TOP Energy designs high quality roof mounting clamps to ensure a fasten connection between the solar panels and the roof. No damaging to the original structure of the roof, with good result of water and wind resistance.

Material information

Main material: high strength aluminum alloy 6005-T5. This aluminum alloy has excellent corrosion resistance and can effectively resist a variety of harsh environments, such as humidity, acid rain, etc. It is ensuring that the fixture is not rusted and damaged during long-term use. Its high strength characteristics that it can withstand the weight of the solar panel as well as external wind, gravity and other forces.

PRODUCT PARAMETERS

Surface treatment: After anodizing treatment, further enhance its corrosion resistance. The Standing Seam Roof Clamp looks more beautiful and durable. Our processing of anodized film thickness is not less than 10μm.

Dimension

Roof version: our TOP brand Standing Seam Roof Clamp can be adapted to the common vertical locking roof version, and the edge height range is 30mm-80mm, which can meet the needs of different building roofs.

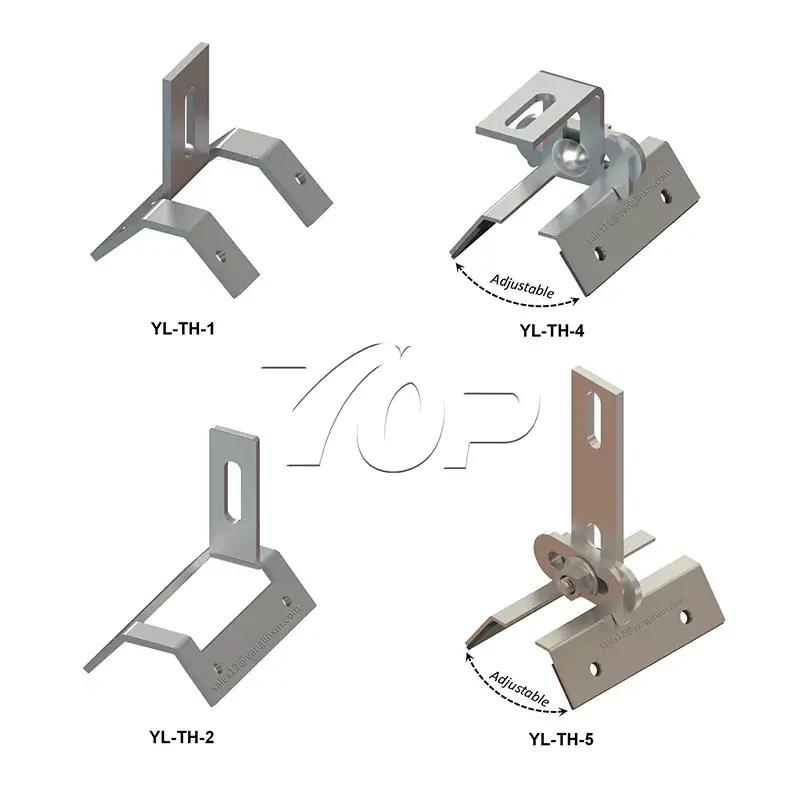

Clamp size: The main length of the clamp is divided into 100mm, 150mm and 200mm more options according to different models, the width and thickness is available for customization. TOP brand designs can ensure sufficient contact area and clamping force, It will not be too bulky to affect the installation and overall beauty.

Performance characteristics

Wind resistance: Through the professional wind tunnel test, in the case of wind speed up to more than 200km/h, our can still ensure the stable connection between the solar panels and the roof, our Corrosion - Resistant Standing Seam Roof Clamp designs effectively prevent the safety problems caused by high speed wind.

Waterproof performance: Unique rubber gasket design, gasket material is ethylene propylene diene rubber (EPDM), with good aging resistance, weather resistance and waterproof performance.

Loading capacity: The static carrying capacity of a single High - Strength Standing Seam Roof Clamp is not less than 50kg, and the dynamic carrying capacity is not less than 30kg, which can reliably carry the weight of solar panels and the load generated under various operating conditions.

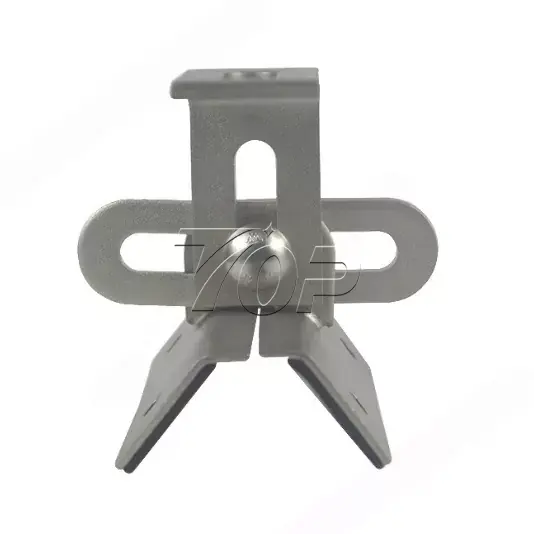

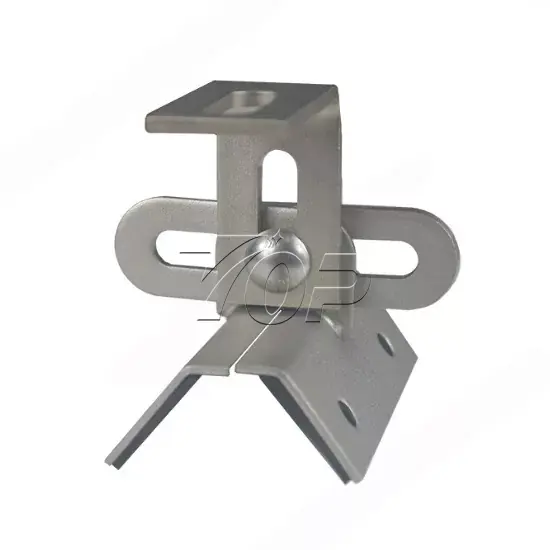

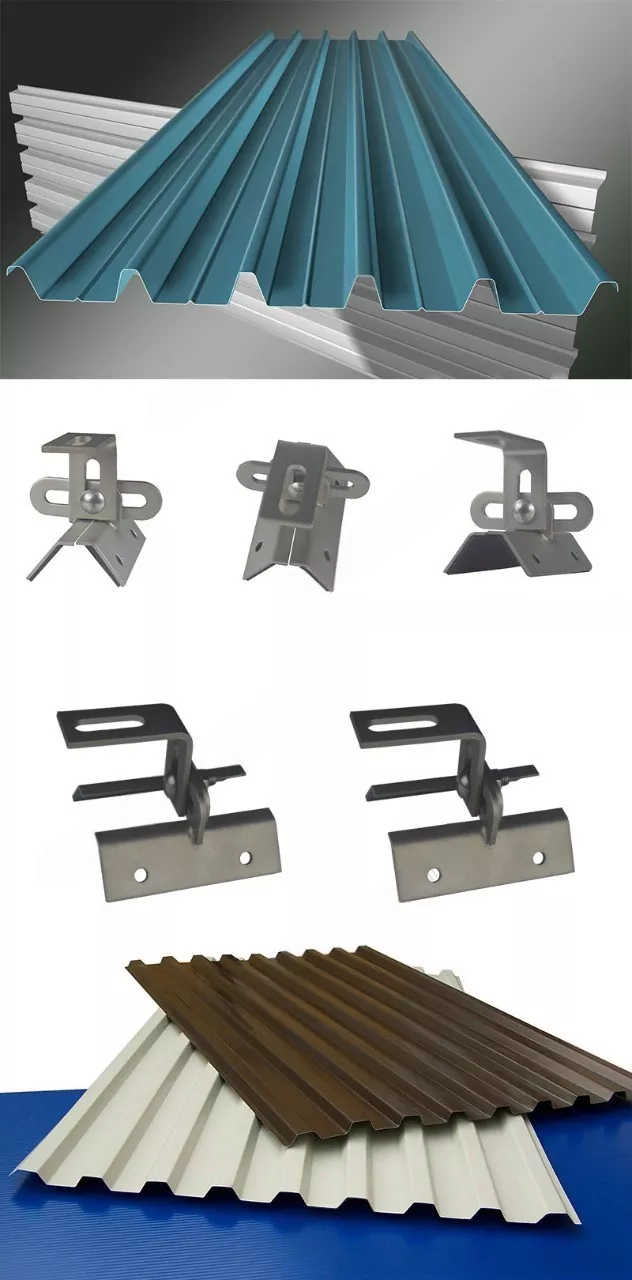

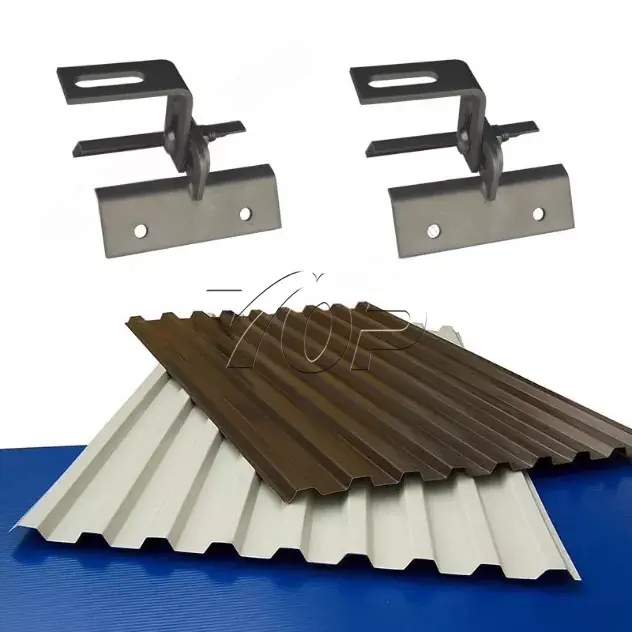

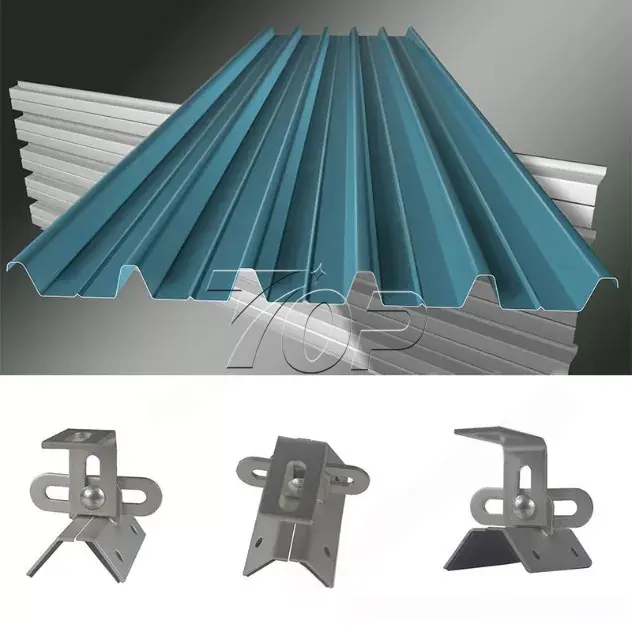

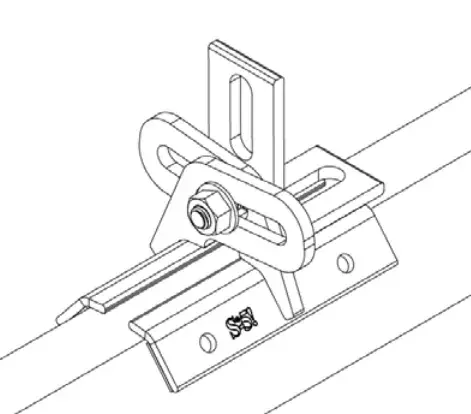

PRODUCT SHOW

Installation Method

Convenient Installation:

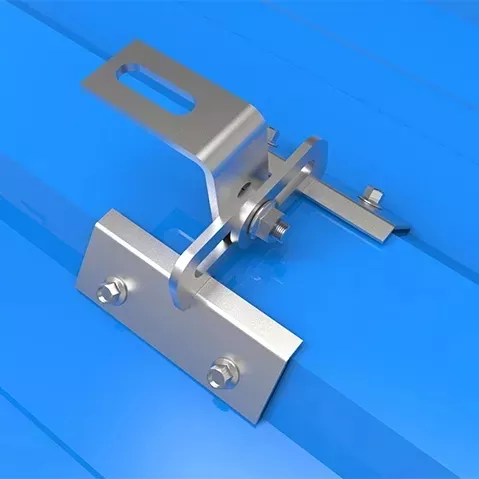

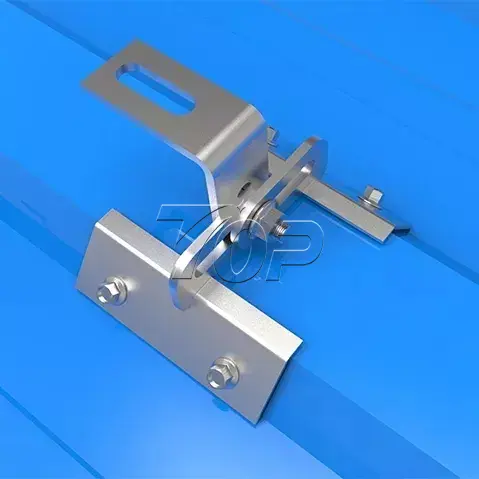

By adopting a unique drill - free design, the No-drill Standing Seam Roof Clamp is bayonet tightly bites with the vertical locking edge of the roof. There is no need to punch holes in the roof, which avoids damaging the roof's waterproof structure. This significantly shortens the installation time and improves construction efficiency.

Flexible Adjustment:

During the installation process, the Roof Clamp for Standing Seam Installation can be adjusted at an angle of ±10°, enabling it to adapt to roofs with different slopes and ensuring the flatness and optimal installation angle of the photovoltaic modules.
