Mini Rail Mounting System

Top Energy mini rail mounting system is a mini rail system designed specifically for solar roof installation. Its main function is to accurately locate and firmly support solar modules to ensure that the modules are arranged in an orderly manner on the roof. The mini rail can adapt to the needs of solar roof projects of different scales and layouts with its flexible characteristics.

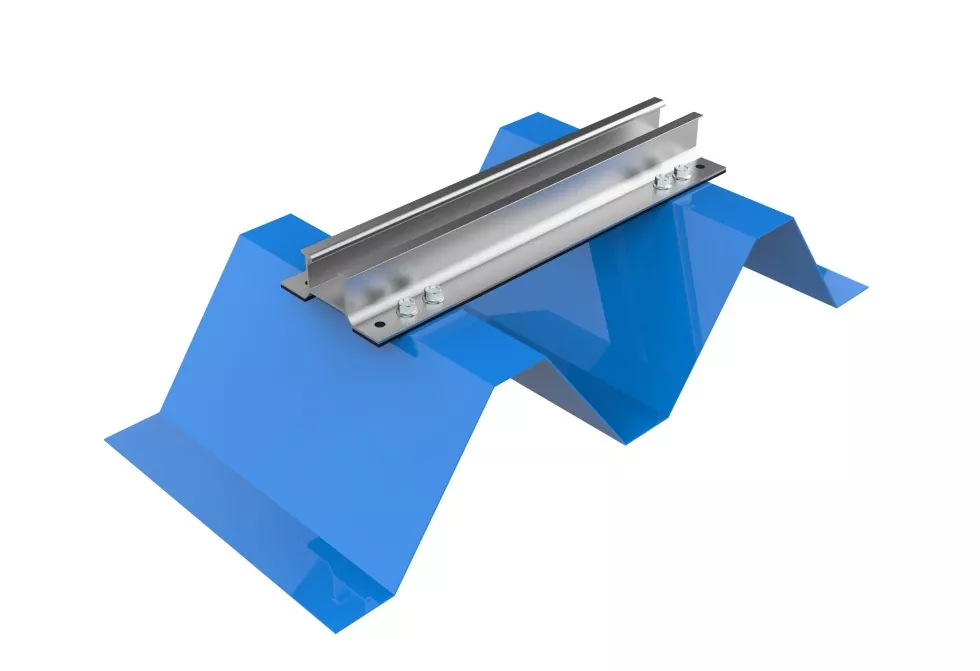

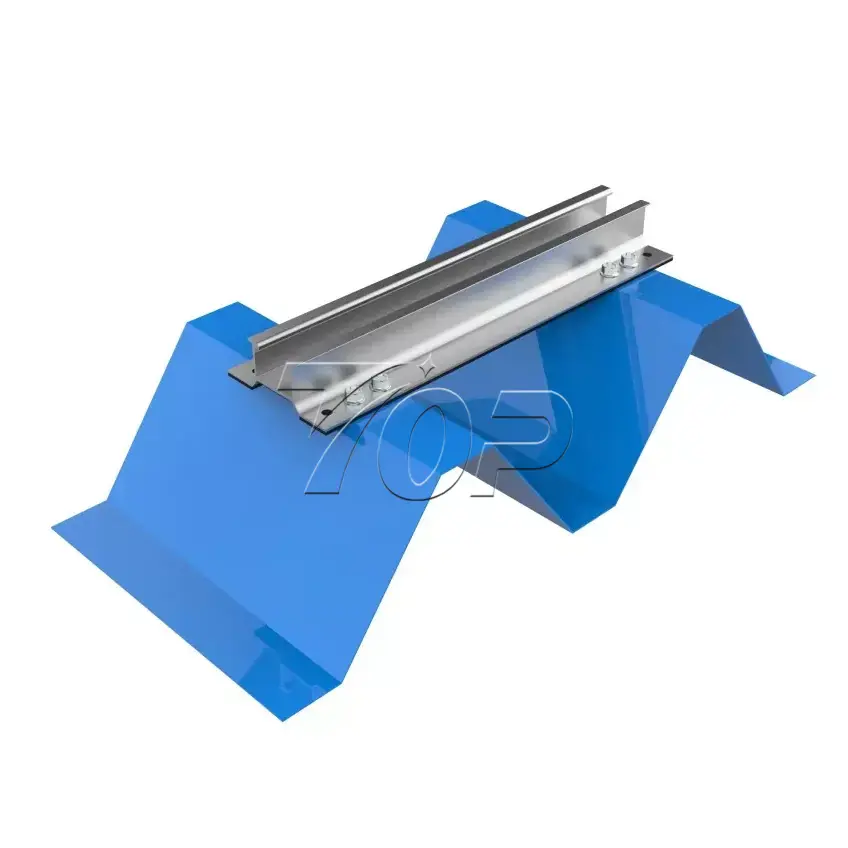

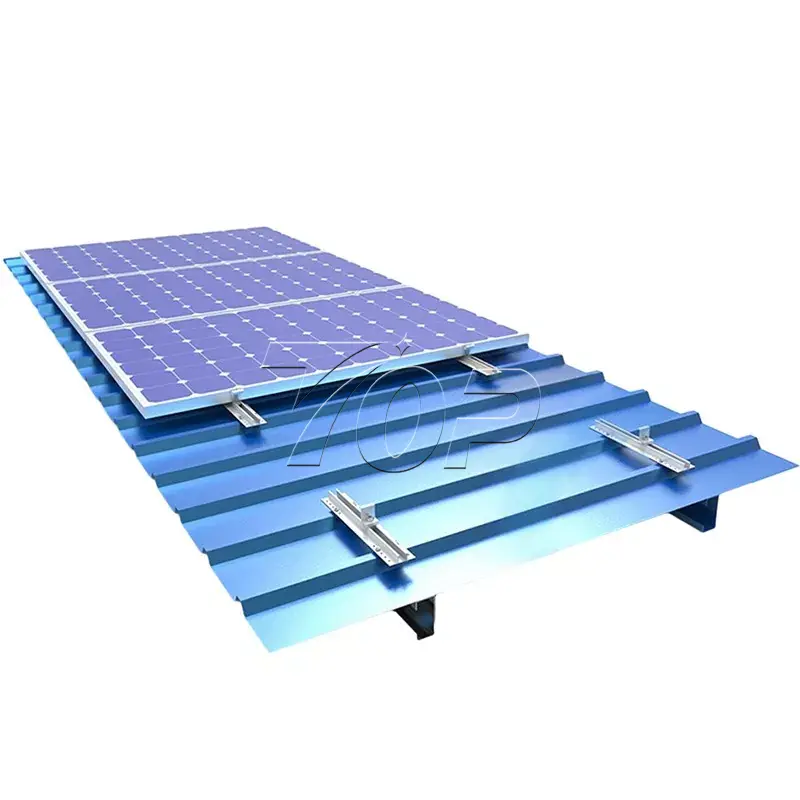

Top Energy Mini rail mount was specially developed for metal roofs such as trapezoidal sheet roofs and corrugated roofs. Regular specifications are 200mm length, it’s lightweight and easy to carry and operate during roof installation, effectively alleviating the extra load-bearing burden on the roof and reducing installation difficulty.

Mini rail system is a lower cost and easy installation solution for rooftop project, and impressing clients with its versatility and simplicity, widely used all over the world.

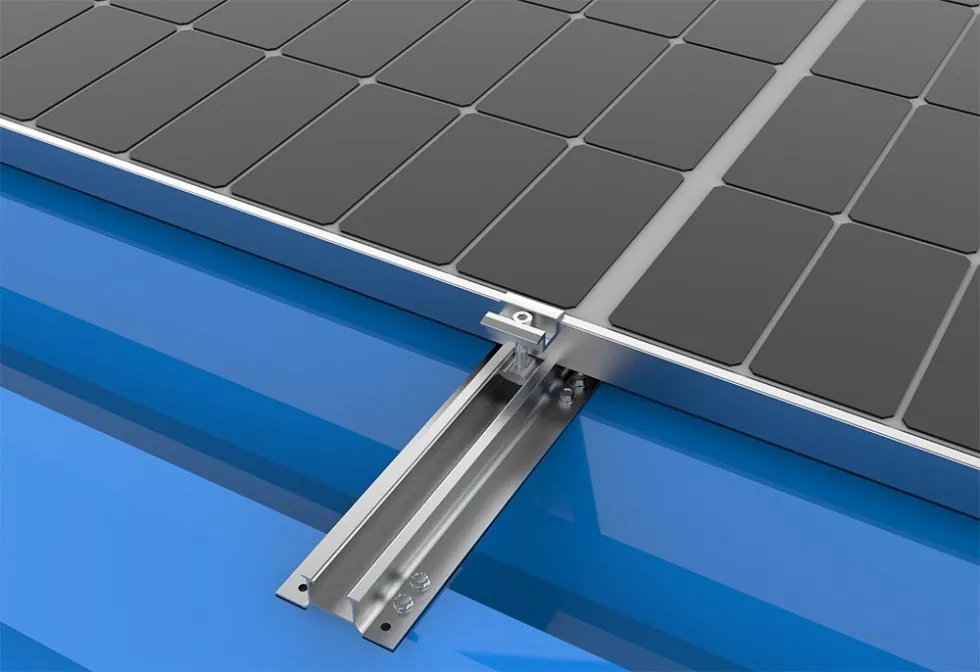

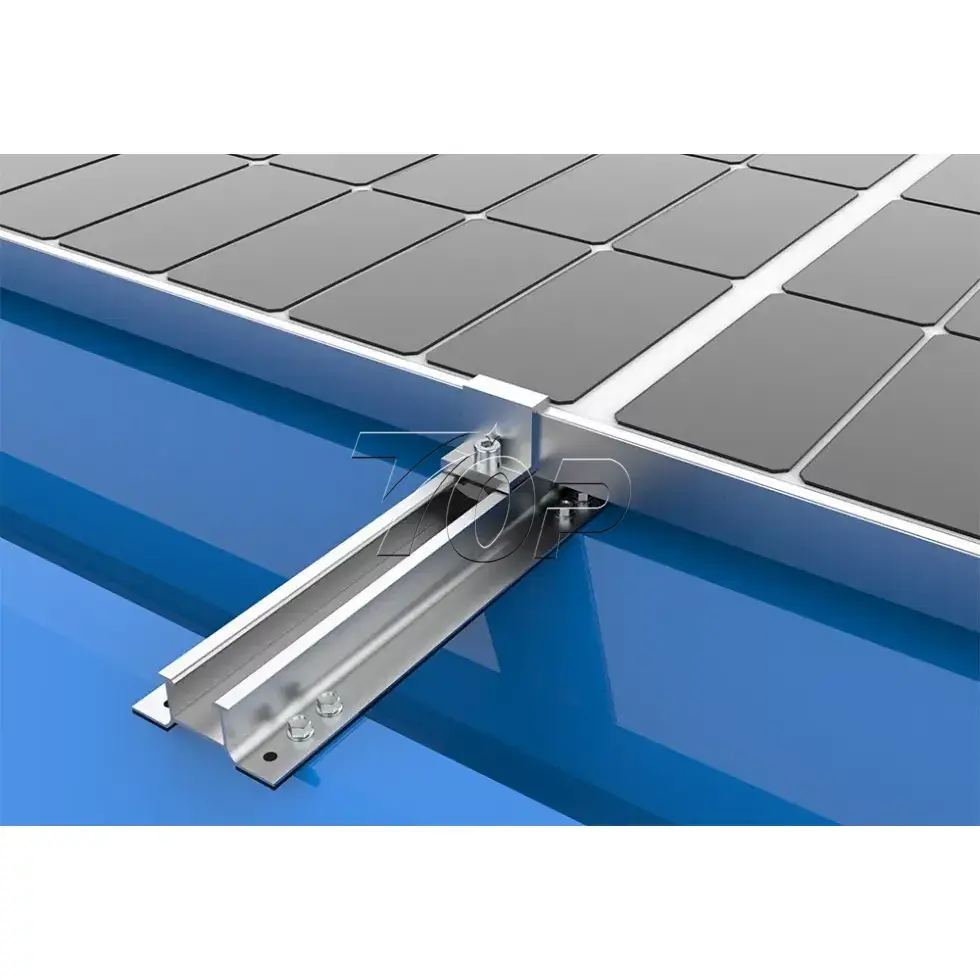

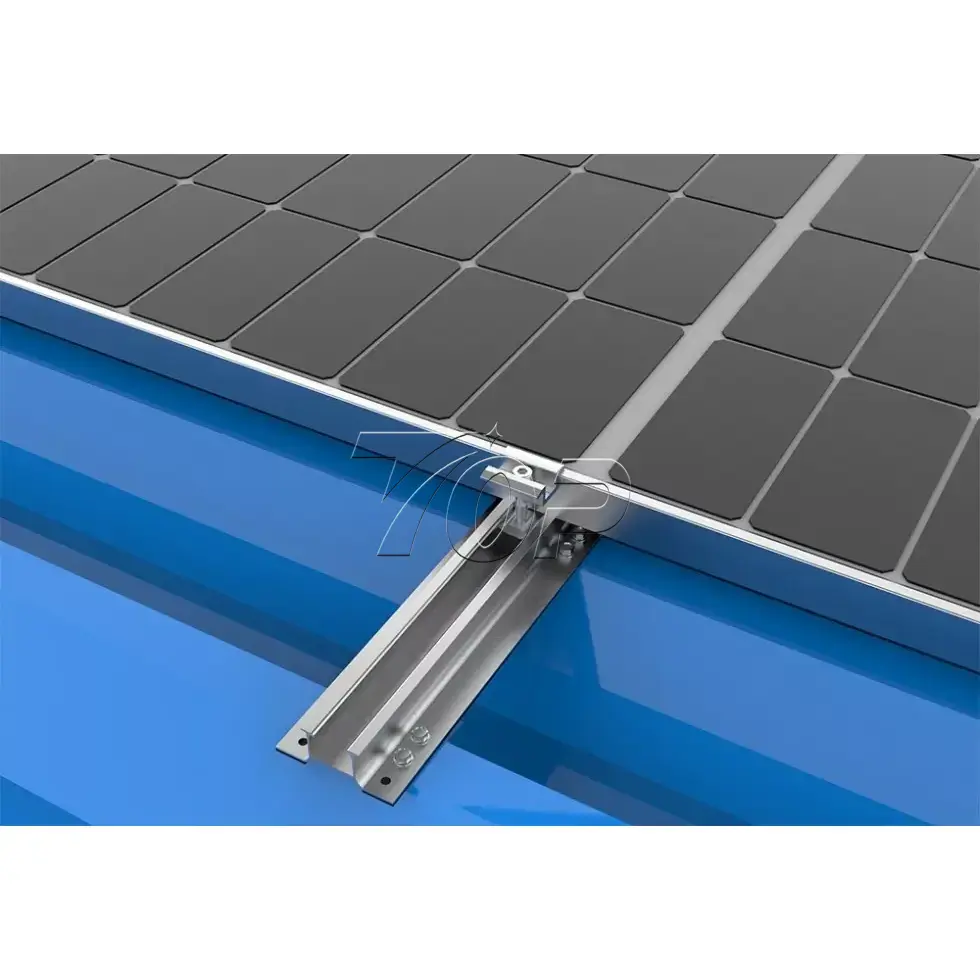

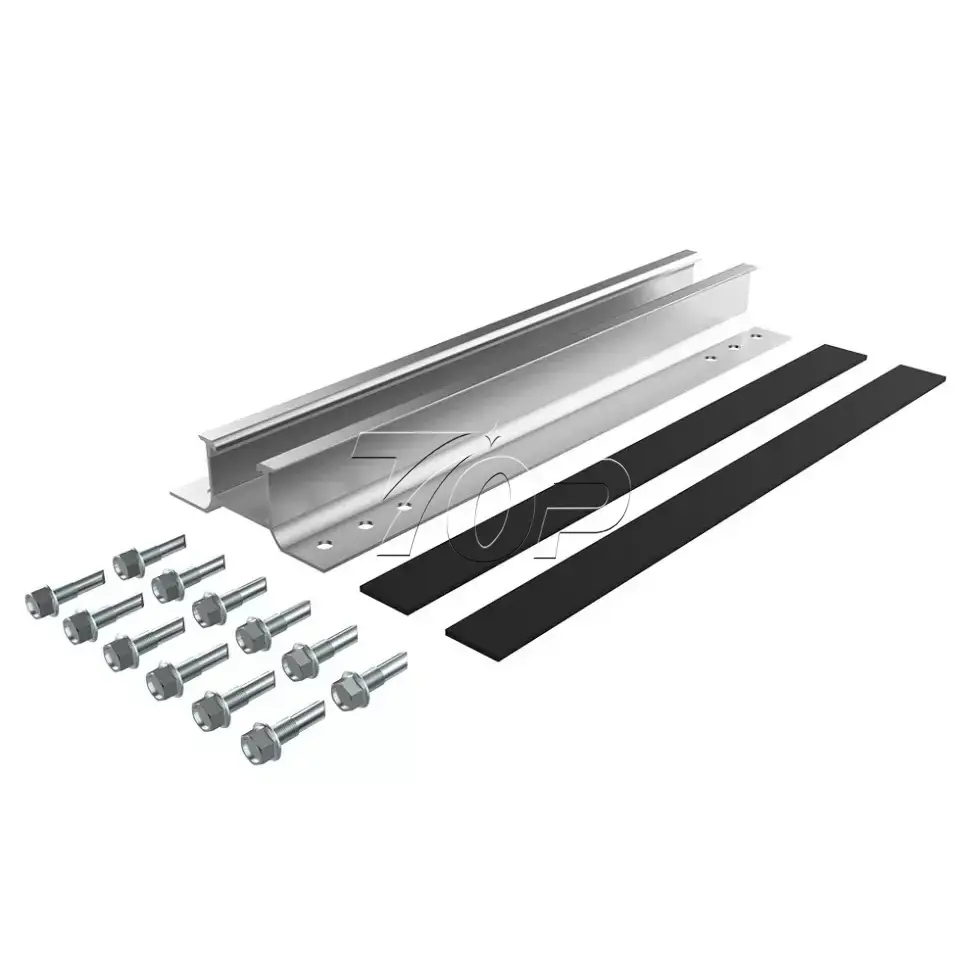

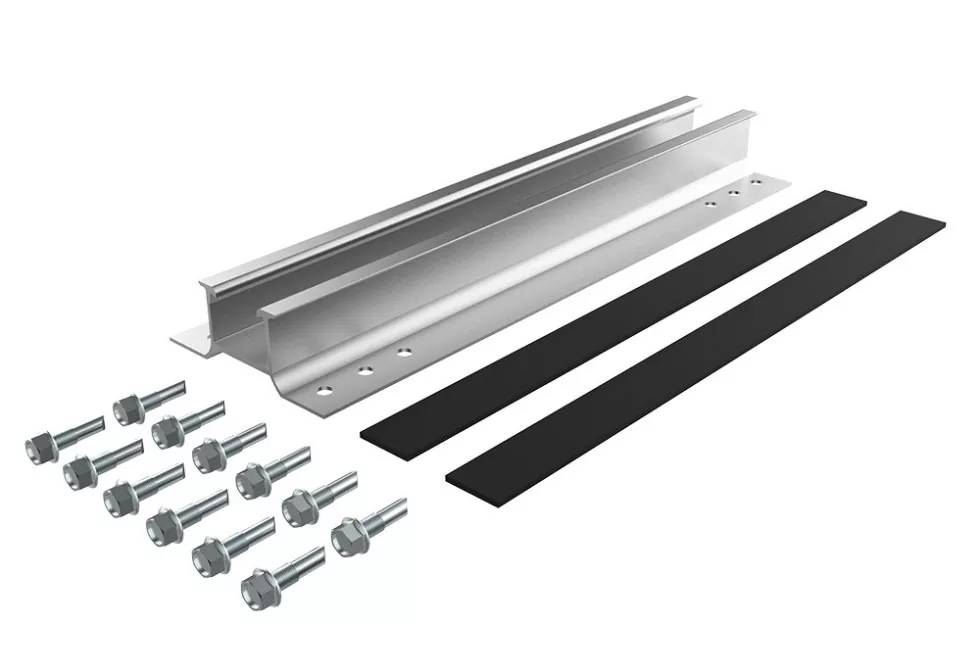

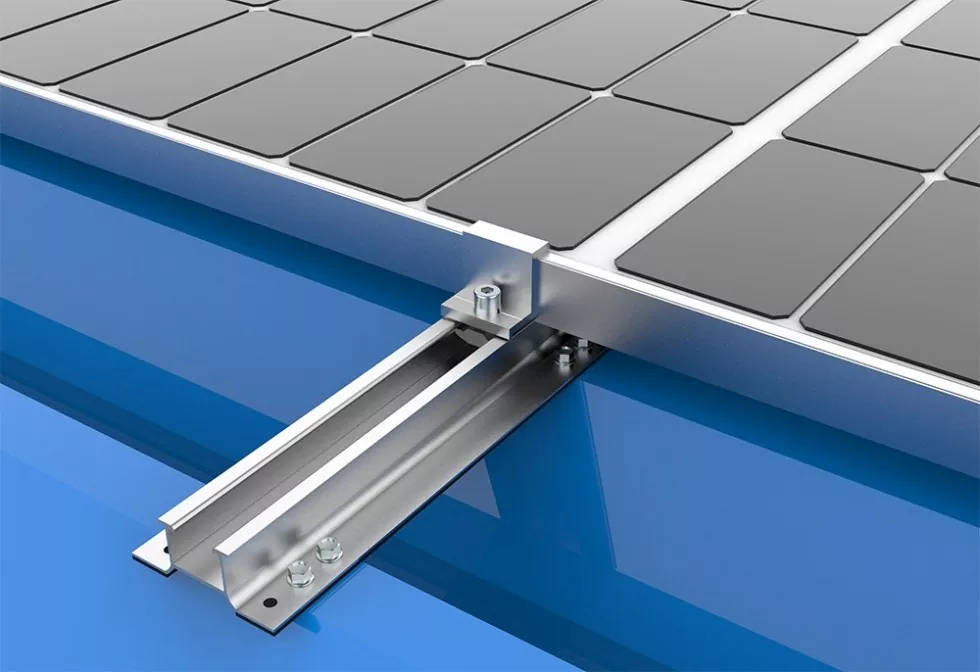

Top Energy solar roof mini rail can be installed directly on metal rooftop by self-tapping screws, it always comes with rubber pad, which can prevent water leaking problem caused by drilling holes.

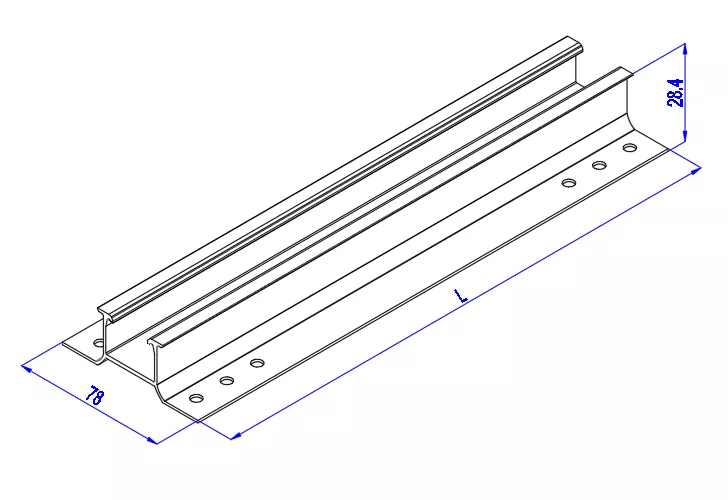

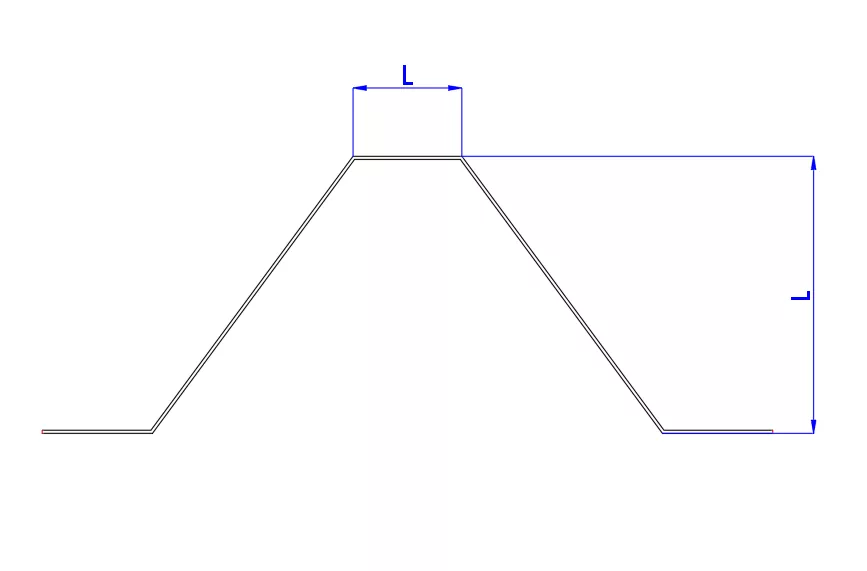

Technical parameters

Features & Benefits

• 1. Pre-assembled design, easy and efficient installation.
• 2. Can be adapted to all kinds of color steel tile roofs,
• 3. Made of high grade aluminum 6005 - T5, light weight and high strength.
• 4. It can withstand strong winds of 60m/s and snow loads of 1.6KN/m², ensuring the stability and safety of the system.
• 5. Can be adapted to all kinds of solar modules

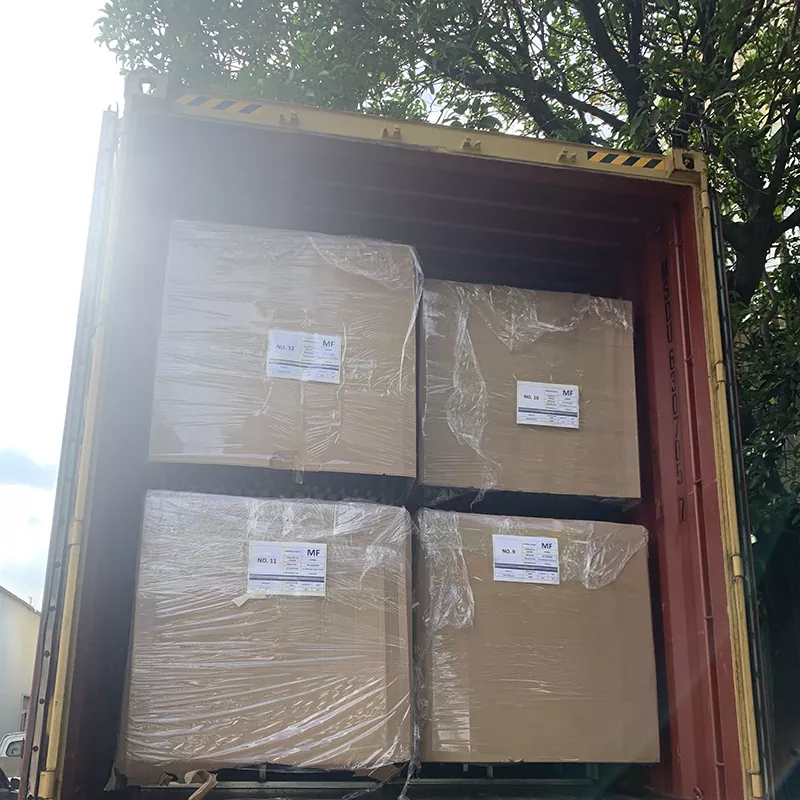

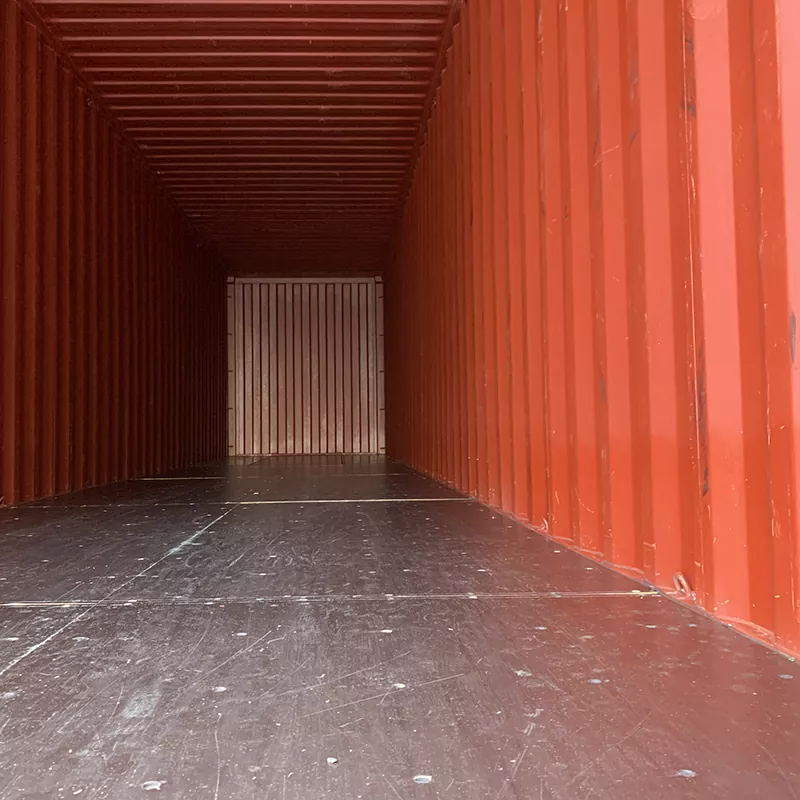

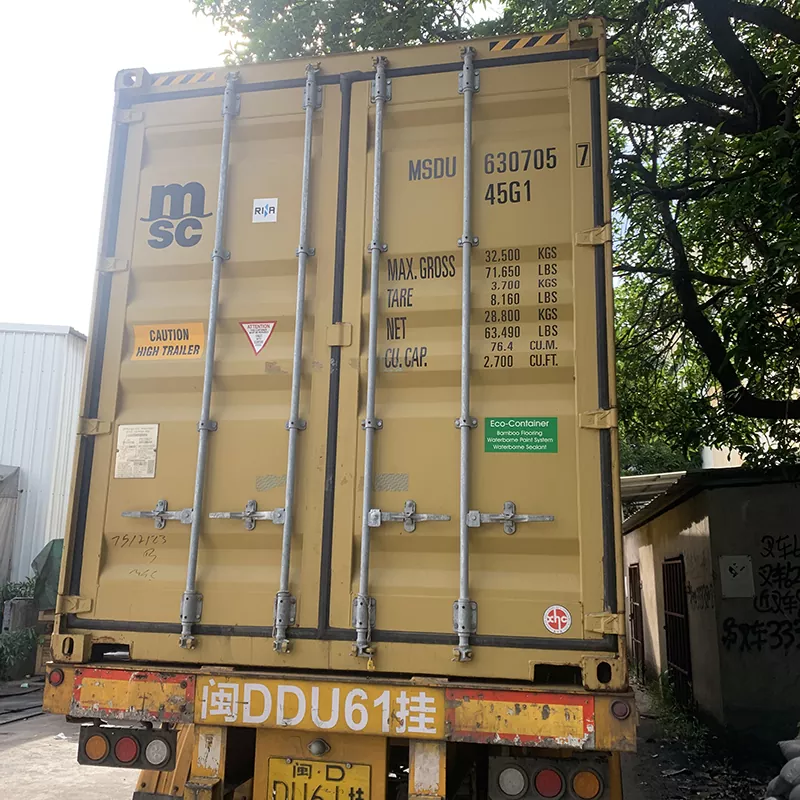

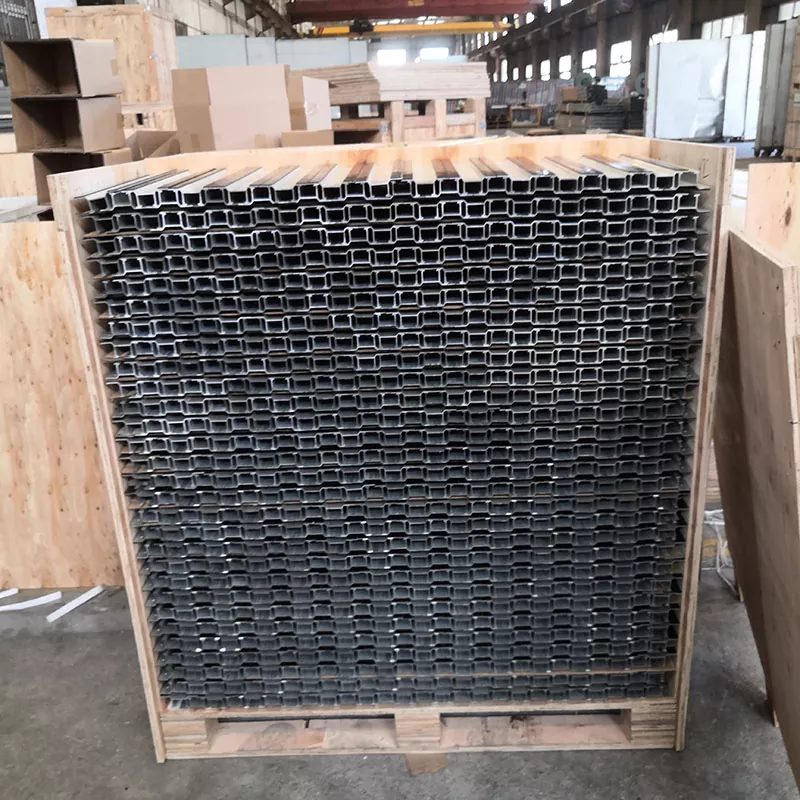

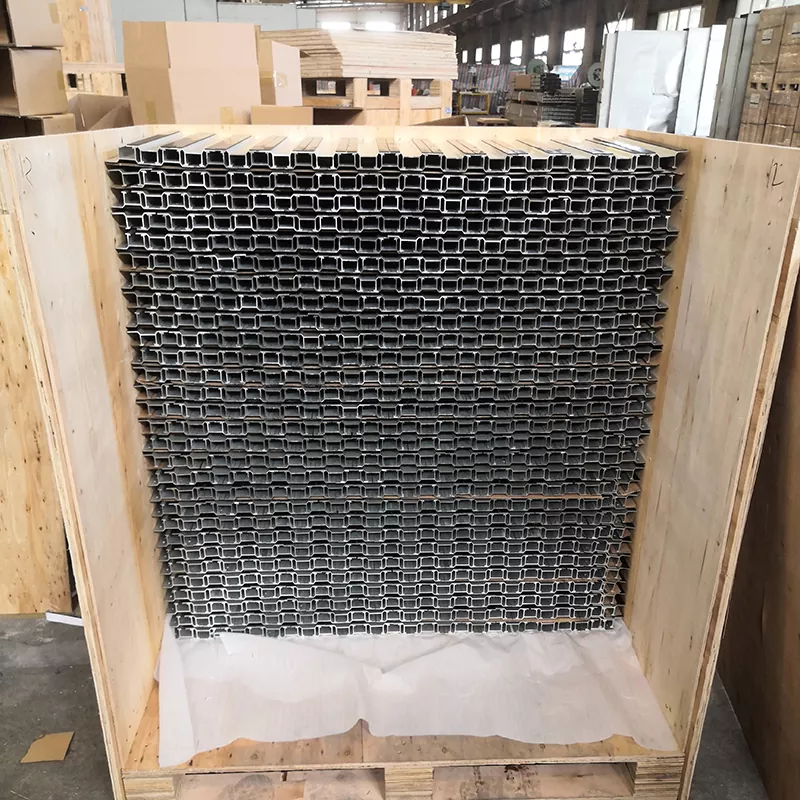

Product Transportation

FAQ

1. What is the load-bearing capacity of the mini rails? How many solar modules can they support?

A: Mini rails are made of 6005-T5 aluminum alloy and have excellent load-bearing capacity. In normal circumstances, they can easily carry solar modules of common specifications on the market and meet the installation needs of solar projects of different scales.

2. What is the installation process of mini rail mounting system?

A: The installation process of solar PV mini rail is very easy and direct, all you need to do is using self-tapping screws to fixed the mini rail on rooftop, and install the rest components, we will also provide a installation instruction for you.
