Solar Panels on Flat Roof

TOP Energy brand rooftop structure specially designed for supporting Solar Panels on Flat Roof. We have been engaged in designing cost-effective and reliable solar mounting brackets for various rooftop environments. We are not only optimizing solar panel mounting structure, but also saving the costs and simplifying the manual operations. The standard designed service life of the structure is over 25 years.
Brand Name: TOP Energy
Product Material: Aluminum Al6005-T5
Product Function: Ballast model installation for roof solar
Service Life: ≥25 years

Send Inquiry PDF DownLoad

Product Description

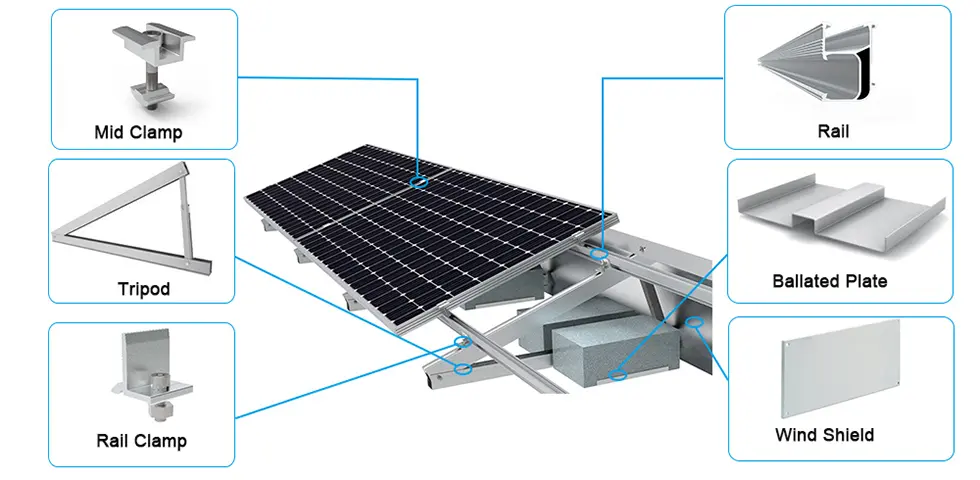

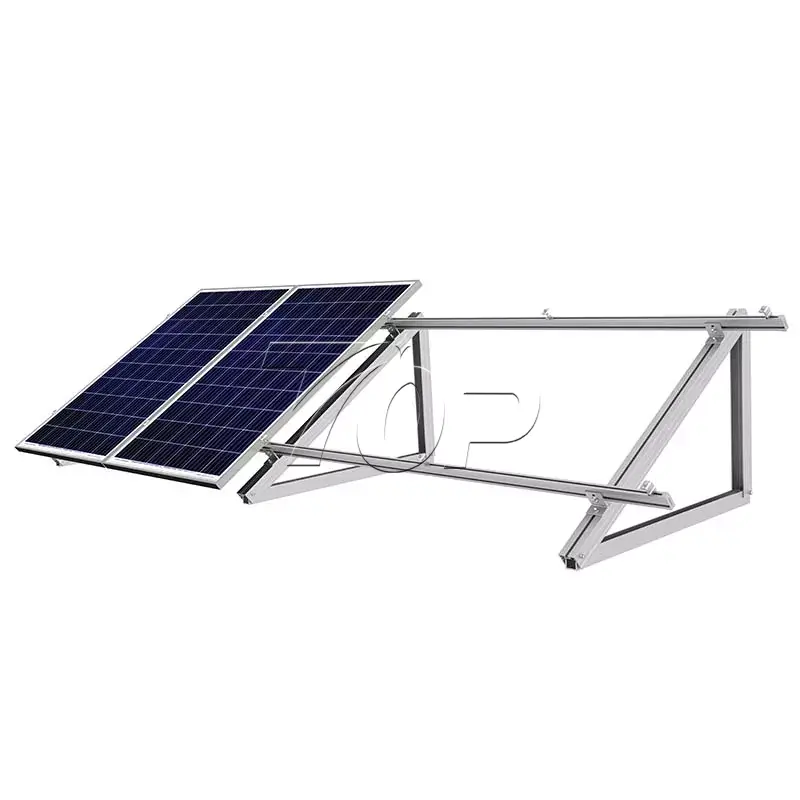

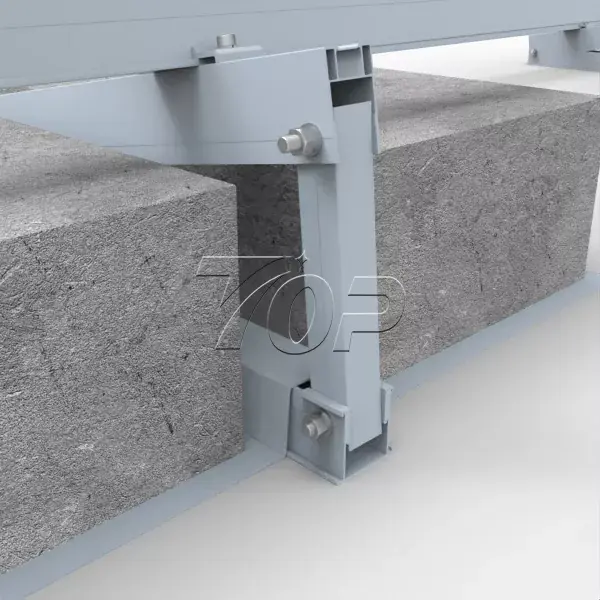

Triangle Ballast type Solar Panels on Flat Roof is a non-penetrating solar installation solution specifically designed for flat roofs. The solar modules are secured by concrete ballast blocks, which eliminates drilling holes on the roof nor damaging the roof waterproof layer and perfectly protects the waterproof.

Top Energy branded structure is aluminum/carbon steel material. The surface treatment is high grade anodization processing, it has high anti corrosion performance. Our Al6005-T5 aluminum material provides excellent structural hardness, withstands 60m/s high wind loads and 14kn/m2 snow withstand loads ability.

Material	Aluminum alloy 6005-T5 (bracket) + concrete ballast block
Applicable components	Double glass/single glass components (Max size 2279×1134mm)
Angle	10°~30° (adjustable)
Wind pressure	≥2.4kPa (standard), can be upgraded to 4.0kPa
Certification	TUV, UL, AS/NZS1170

Technical Parameters

Brand Name	TOP Energy
Model Type	Adjustable Triangleballast solar panel mounting System
Wind Load	60M/S
Snow Load	1.4KN/m2
Surface Treatment	High grade anodization
Material	AL6005-T5 Aluminum or SUS304 stainless steel
Module Orientation	Landscape or Portrait
Application	Solar Panels mounted on flat roofs
Installation Site	Flat floor or open ground
Warranty	10 years
Service Life	Over 25 years

This bracket with fordable designed structure could be easily transported. Especially our less accessories optimized design decreasing the project purchasing budget. It also simplifies to make installation more easy and taken less times.

Why Choosing Triangle Ballast System Designed Solar Panel on Flat Roof?

100% waterproof protection: completely eliminate the owner's concerns about water leakage.

Long-term economy: Save roof maintenance costs and extend roof life.

Codes Features

Perforation-free design: Avoid the risk of roof leakage caused by roof destroy mounting, suitable for rental plants or scenarios with high waterproof requirements.

Ballast Mounting System structure: strong wind resistance (can resist 60m/s wind speed), reduce the risk of overturning.

Quick installation: Modular design, no heavy machinery, manual assembly.

Flexible weight: Dynamically adjust the ballast weight according to local wind pressure and snow load.

Items	Triangle Ballast Mounted Solar Panel on Flat Roof	Traditional Penetration Bracket
Installation mode	Ballast block fixed, zero drilling	Need to penetrate the roof, break the waterproof layer
Wind resistance	Up to 60m/s	Usually ≤45m/s
Roof adaptability	Flat roof (slope ≤5°)	Suitable for pitched or flat roofs
Installation speed	Fast (no waterproofing required)	Slow (glue or seal required)
Reversibility	Remove at any time, no damage to roof	The roof needs to be repaired after demolition

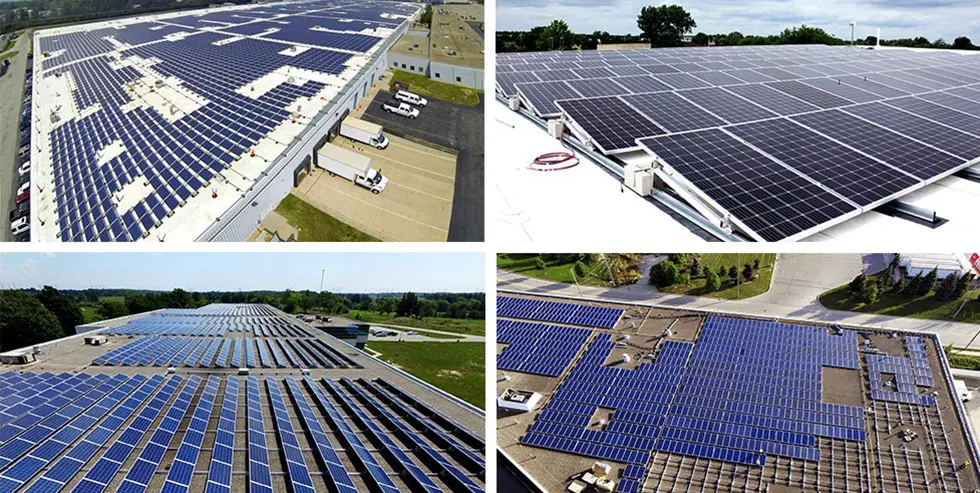

Project

FAQ:

Q1: What is solar panels on flat floor?

A: It is specially designed for flat roof solar panel kit on the concrete flat roof site with the purpose of saving space.

Q2: Why choosing TOP Energy brand?

A: TOP Energy is the reliable and trusted Solar Panels on Flat Roof mount kits manufacturer based in China. We offer the competitive cheap price for reducing your budget.

Q3: How to place order?

A: You could contact us on our website from Whatsapp or send RFQ or E-mail direct contacting, we will have sales to guide your confirm ballast solar panel mounting project demands and placing orders.

Q4: Will you offer installation instructions?

A: Yes, we will. We will provide installation instructions for you.
